| Materiaal: | Brug gegoten, U-bolt staal |
| Standaard: | Voorheen DIN 741 |
| Afwerking: | Elektrolytisch verzinkt |
| Certificering: | 2.1 |

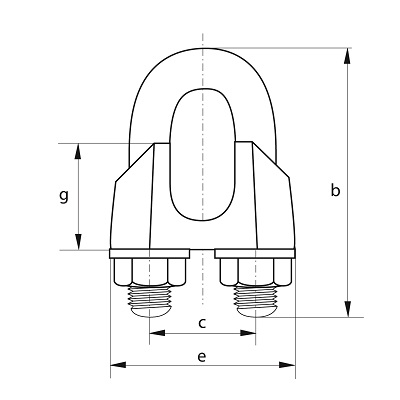

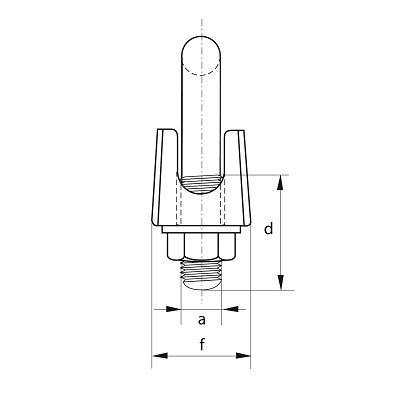

| ART.NR | diameter | a | b | c | d | e | f | g | kg |
| mm | mm | mm | mm | mm | mm | mm | mm | 100 pcs | |
| GPE6220000003 | 3 | 4 | 20 | 9 | 12 | 21 | 10 | 10 | 1.4 |
| GPE6220000005 | 5 | 5 | 24 | 11 | 13 | 23 | 11 | 10 | 1.5 |
| GPE6220000006 | 6 | 5 | 28 | 13 | 15 | 26 | 12 | 11 | 1.6 |
| GPE6220000008 | 8 | 6 | 34 | 16 | 19 | 30 | 14 | 15 | 4.1 |
| GPE6220000010 | 10 | 8 | 42 | 19 | 22 | 34 | 18 | 17 | 6 |
| GPE6220000011 | 11 | 8 | 44 | 20 | 22 | 36 | 19 | 18 | 7 |
| GPE6220000013 | 13 | 10 | 55 | 24 | 30 | 42 | 23 | 21 | 11.8 |
| GPE6220000014 | 14 | 10 | 57 | 25 | 30 | 44 | 23 | 22 | 12.4 |
| GPE6220000016 | 16 | 12 | 63 | 29 | 33 | 50 | 26 | 26 | 21 |
| GPE6220000019 | 19 | 12 | 75 | 32 | 38 | 54 | 29 | 30 | 23.6 |
| GPE6220000022 | 22 | 14 | 85 | 37 | 44 | 61 | 33 | 34 | 23.8 |
| GPE6220000026 | 26 | 14 | 95 | 41 | 45 | 65 | 35 | 37 | 41 |
| GPE6220000030 | 30 | 16 | 110 | 48 | 50 | 74 | 37 | 43 | 62 |
| GPE6220000034 | 34 | 16 | 120 | 52 | 55 | 80 | 42 | 50 | 75 |
| GPE6220000040 | 40 | 16 | 140 | 58 | 60 | 88 | 45 | 55 | 104 |
| GPE6220000045 | 45 | 18 | 163 | 65 | 75 | 97 | 49 | 60 | 134 |
| GPE6220000050 | 50 | 20 | 170 | 72 | 77 | 106 | 51 | 65 | 175 |
