| Materiaal: | Gesmeed hoogwaardig staal SAE 1035 of 1045 |
| Veiligheidsfactor: | MBL is gelijk aan 5 x WLL |
| Standaard: | ASTM F1145-92 voormalige U.S. Federal Specification FF-T-791b |
| Afwerking: | Verzinkt |
| Certificering: | 2.1, 2.2, 3.1, MTCa, CE |

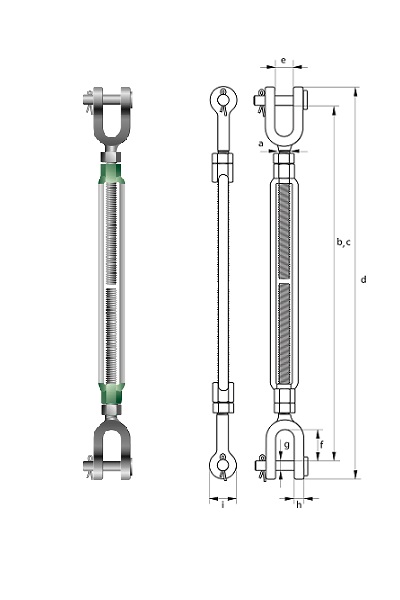

| ART.NR | WLL | a | b | c | d | e | f | g | h | i | kg | |
| t | inch | inch | mm | mm | mm | mm | mm | mm | mm | mm | pc | |
| GPG6313034006 | 2.36 | 3/4 | 6 | 369 | 487 | 439 | 24 | 38 | 16 | 16 | 41 | 2.59 |
| GPG6313034009 | 2.36 | 3/4 | 9 | 444 | 640 | 514 | 24 | 38 | 16 | 16 | 41 | 3.13 |
| GPG6313034012 | 2.36 | 3/4 | 12 | 520 | 792 | 590 | 24 | 38 | 16 | 16 | 41 | 3.42 |
| GPG6313034018 | 2.36 | 3/4 | 18 | 670 | 1096 | 740 | 24 | 38 | 16 | 16 | 41 | 4.51 |
| GPG6313078012 | 3.27 | 7/8 | 12 | 561 | 826 | 638 | 27 | 42 | 19 | 19 | 48 | 4.93 |
| GPG6313078018 | 3.27 | 7/8 | 18 | 713 | 1132 | 790 | 27 | 42 | 19 | 19 | 48 | 6.41 |
| GPG6313100006 | 4.54 | 1 | 6 | 447 | 554 | 532 | 31 | 50 | 22 | 20 | 54 | 5.18 |
| GPG6313100012 | 4.54 | 1 | 12 | 598 | 859 | 683 | 31 | 50 | 22 | 20 | 54 | 6.43 |
| GPG6313100018 | 4.54 | 1 | 18 | 750 | 1168 | 835 | 31 | 50 | 22 | 20 | 54 | 8.4 |
| GPG6313100024 | 4.5 | 1 | 24 | 903 | 1470 | 988 | 31 | 50 | 22 | 20 | 54 | 8.9 |
| GPG6313114012 | 6.9 | 1 1/4 | 12 | 641 | 914 | 748 | 44 | 71 | 29 | 26 | 68 | 11.2 |
| GPG6313114018 | 6.9 | 1 1/4 | 18 | 803 | 1228 | 910 | 44 | 71 | 29 | 26 | 68 | 13.6 |
| GPG6313114024 | 6.9 | 1 1/4 | 24 | 962 | 1539 | 1069 | 44 | 71 | 29 | 26 | 68 | 15 |
| GPG6313112012 | 9.71 | 1 1/2 | 12 | 675 | 942 | 806 | 52 | 71 | 35 | 28 | 80 | 17 |
| GPG6313112018 | 9.71 | 1 1/2 | 18 | 825 | 1244 | 956 | 52 | 71 | 35 | 28 | 80 | 19.3 |
| GPG6313112024 | 9.71 | 1 1/2 | 24 | 980 | 1551 | 1111 | 52 | 71 | 35 | 28 | 80 | 20.7 |
| GPG6313134018 | 12.7 | 1 3/4 | 18 | 938 | 1316 | 1092 | 60 | 86 | 41 | 33 | 90 | 25 |
| GPG6313134024 | 12.7 | 1 3/4 | 24 | 1089 | 1621 | 1243 | 60 | 86 | 41 | 33 | 90 | 28.7 |
| GPG6313200024 | 16.8 | 2 | 24 | 1151 | 1671 | 1338 | 63 | 93 | 51 | 40 | 107 | 45.4 |
| GPG6313212024 | 27.2 | 2 1/2 | 24 | 1255 | 1831 | 1480 | 75 | 114 | 57 | 41 | 143 | 88 |
| GPG6313237024 | 34 | 2 3/4 | 24 | 1348 | 1882 | 1604 | 90 | 110 | 70 | 41 | 158 | 98 |
