| Materiaal: | Grade 5, RVS 316L |
| Veiligheidsfactor: | MBL is gelijk aan 4 x WLL |
| Afwerking: | Gepolijst |
| Gebruikstemperatuur: | -40°C tot en met +200°C |
| Certificering: | 2.1, 2.2, 3.1, MTCB |

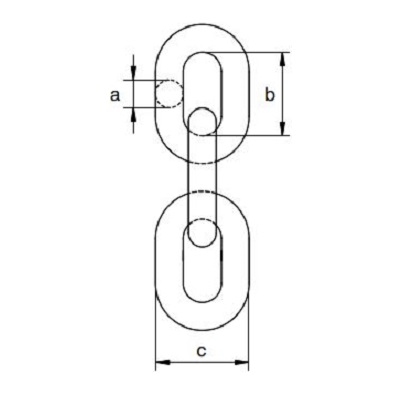

| ART.NR | a | WLL | b | c | kg | |
| mm | inch | t | mm | mm | pc | |
| GPCHAINI00006 | 6 | 7/32 | 0.7 | 18 | 21 | 0.78 |
| GPCHAINI00008 | 8 | 5/16 | 1.2 | 24 | 29 | 1.3 |
| GPCHAINI00010 | 10 | 3/8 | 1.6 | 30 | 34 | 2.14 |
| GPCHAINI00013 | 13 | 1/2 | 2.7 | 39 | 45 | 3.64 |
