| Materiaal: | Grade 5, RVS 316L |
| Veiligheidsfactor: | MBL is gelijk aan 4 x WLL |
| Afwerking: | Gepolijst |
| Gebruikstemperatuur: | -40°C tot en met +200°C |
| Certificering: | 2.1, 2.2, 3.1 |

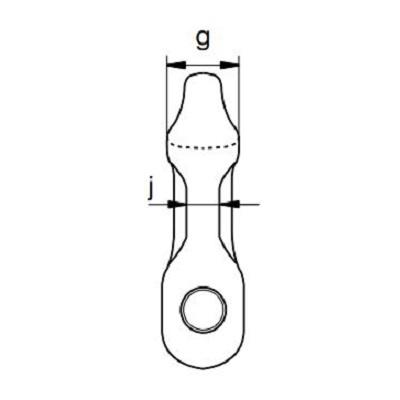

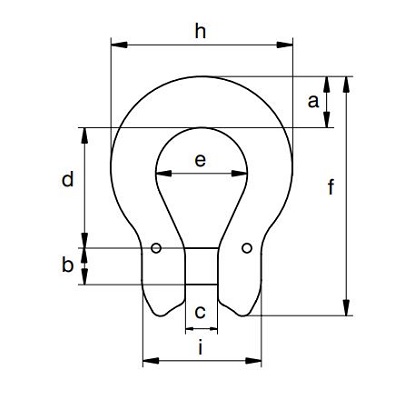

| ART.NR | WLL | a | b | c | d | e | f | g | h | i | j | kg | ||
| mm | inch | t | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | pc | |
| GPCOI05000500 | 5 | 3/16 | 0.5 | 14 | 6 | 7 | 26 | 20 | 53 | 13 | 41 | 28 | 6 | 0.07 |
| GPCOI06000700 | 6 | 7/32 | 0.7 | 14 | 8 | 7 | 25 | 20 | 53 | 13 | 41 | 28 | 6 | 0.07 |
| GPCOI07081200 | 7 – 8 | 1/4 – 5/16 | 1.2 | 20 | 9 | 9 | 34 | 24 | 71 | 16 | 55 | 32 | 8 | 0.18 |
| GPCOI10001600 | 10 | 3/8 | 1.6 | 19 | 13 | 12 | 40 | 31 | 82 | 17 | 63 | 42 | 11 | 0.28 |
| GPCOI13002700 | 13 | 1/2 | 2.7 | 25 | 16 | 15 | 51 | 40 | 106 | 20 | 84 | 54 | 14 | 0.64 |
