| Materiaal: | Grade 8 |
| Veiligheidsfactor: | MBL is gelijk aan 4 x WLL |
| Afwerking: | Geverfd wit |
| Gebruikstemperatuur: | -40°C tot en met +200°C |
| Certificering: | 2.1, 2.2, MPIB |

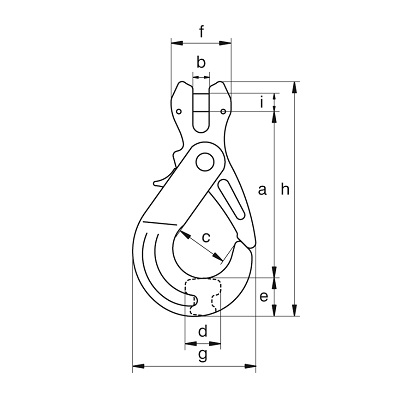

| ART.NR | WLL | a | b | c | d | e | f | g | h | i | kg | ||
| mm | inch | t | mm | mm | mm | mm | mm | mm | mm | mm | mm | pc | |
| GPGKC08002000 | 7 – 8 | 1/4 – 5/16 | 2 | 85 | 9 | 32 | 17 | 25 | 32 | 77 | 136 | 9 | 0.55 |
| GPGKC10003200 | 10 | 3/8 | 3.2 | 116 | 12 | 43 | 24 | 29 | 42 | 92 | 168 | 13 | 1.02 |
| GPGKC13005400 | 13 | 1/2 | 5.4 | 153 | 15 | 47 | 32 | 34 | 54 | 111 | 218 | 16 | 2.01 |
| GPGKC16008200 | 16 | 5/8 | 8.2 | 166 | 19 | 62 | 37 | 46 | 66 | 142 | 247 | 20 | 3.7 |
| GPGKC20012800 | 18 – 20 | 3/4 | 12.8 | 215 | 23 | 74 | 43 | 57 | 80 | 185 | 312 | 24 | 7.59 |
| GPGKC22015500 | 22 | 7/8 | 15.5 | 242 | 25 | 88 | 52 | 62 | 98 | 207 | 353 | 28 | 10.3 |
