| Materiaal: | Grade 8 |
| Veiligheidsfactor: | MBL is gelijk aan 4 x WLL |
| Afwerking: | Geverfd rood |
| Certificering: | 2.1, 2.2, 3.1 |

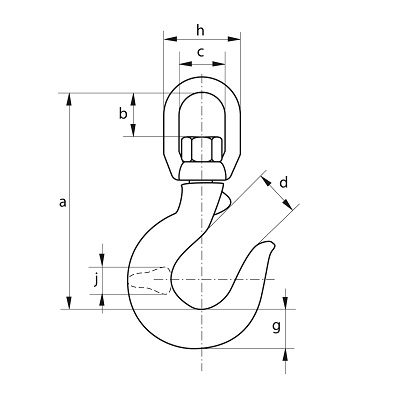

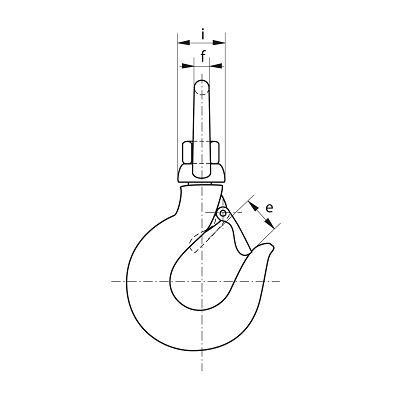

| ART.NR | WLL | a | b | c | d | e | f | g | h | i | j | kg |
| t | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | pc | |
| GPP6703A01250 | 1.25 | 118 | 28 | 31 | 24 | 20 | 11 | 19 | 52 | 30 | 16 | 0.49 |
| GPP6703A01600 | 1.6 | 145 | 35 | 40 | 26 | 22 | 14 | 23 | 68 | 37 | 18 | 0.95 |
| GPP6703A02500 | 2.5 | 167 | 43 | 47 | 32 | 27 | 17 | 27 | 81 | 43 | 20 | 1.48 |
| GPP6703A03200 | 3.2 | 180 | 47 | 47 | 34 | 30 | 17 | 31 | 81 | 43 | 24 | 1.79 |
| GPP6703A05400 | 5.4 | 217 | 54 | 64 | 44 | 37 | 21 | 37 | 106 | 64 | 31 | 3.8 |
| GPP6703A08200 | 8.2 | 276 | 69 | 78 | 55 | 48 | 26 | 48 | 130 | 77 | 37 | 7.4 |
| GPP6703A11500 | 11.5 | 310 | 68 | 82 | 58 | 53 | 22 | 60 | 136 | 82 | 43 | 9.7 |
| GPP6703A16000 | 16 | 352 | 84 | 92 | 66 | 58 | 24 | 67 | 154 | 92 | 52 | 14.9 |
| GPP6703A22000 | 22 | 434 | 107 | 115 | 87 | 78 | 29 | 80 | 191 | 108 | 64 | 27 |
| GPP6703A31500 | 31.5 | 512 | 117 | 132 | 97 | 87 | 34 | 94 | 222 | 132 | 80 | 46 |
