| Materiaal: | C45 |
| Veiligheidsfactor: | MBL is gelijk aan 3.5 x LC |
| Afwerking: | Geverfd groen |
| Certificering: | 2.1, 2.2 |

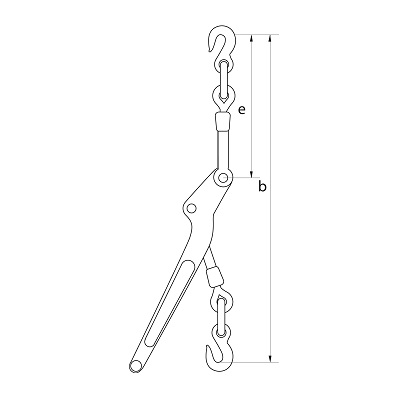

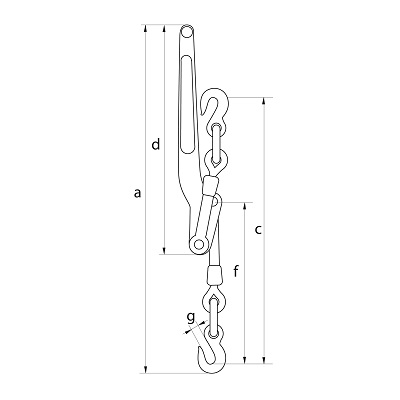

| ART.NR | a | b | c | d | e | f | g | take-up | L/C | PL | MBL | kg | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | t | t | t | pc | |
| GPP7110000008 | 8 – 10 | 610 | 592 | 488 | 408 | 287 | 287 | 12 | 104 | 2.45 | 4.9 | 8.62 | 2.81 |
| GPP7110000010 | 10 – 13 | 768 | 680 | 550 | 458 | 325 | 325 | 16 | 130 | 4175 | 8.35 | 14.97 | 5.08 |
