| Materiaal: | C45 |
| Veiligheidsfactor: | MBL is gelijk aan 3.5 x LC |
| Afwerking: | Geverfd rood of groen |
| Certificering: | 2.1, 2.2 |

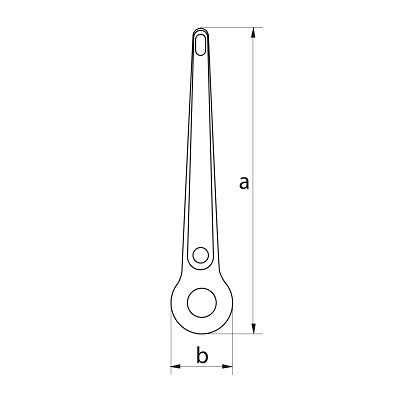

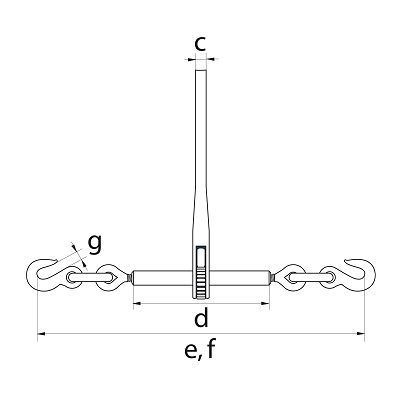

| ART.NR | a | b | c | d | e | f | g | take-up | L/C | PL | MBL | kg | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | t | t | t | pc | |
| GPP7130000008 | 8 – 10 | 385 | 65 | 15 | 255 | 735 | 575 | 12 | 160 | 2.45 | 4.9 | 8.62 | 4.32 |
| GPP7130000010 | 10 – 13 | 385 | 65 | 15 | 255 | 760 | 595 | 16 | 165 | 4175 | 8.35 | 14.97 | 5.73 |
| GPP7130000013 | 13 – 16 | 385 | 65 | 15 | 260 | 840 | 690 | 18 | 150 | 5.9 | 11.8 | 20.865 | 7.85 |
