| Materiaal: | RVS 316 |
| Veiligheidsfactor: | MBL is gelijk aan 6 x WLL |
| Standaard: | Din 82103 |
| Afwerking: | Gepolijst |
| Certificering: | 2.1, 2.2, 3.1, CE |
| Opmerking: | Gemarkeerd met WLL, CE en identificatiesymbool van de fabrikant (VBS), behalve 4 mm omdat deze te klein is |

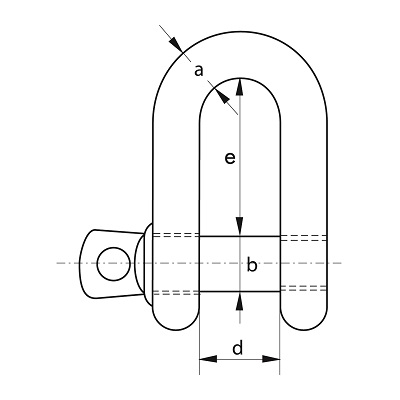

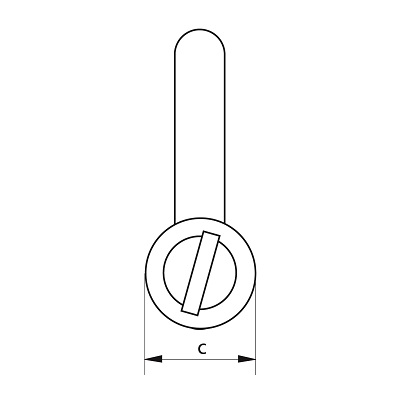

| ART.NR | WLL | a | b | c | d | e | kg |
| t | mm | mm | mm | mm | mm | 100 pcs | |
| GPR7821000004 | – | 4 | 4 | 8 | 8 | 16 | 0.9 |
| GPR7821000005 | 0.12 | 5 | 5 | 10 | 10 | 20 | 1.6 |
| GPR7821000006 | 0.15 | 6 | 6 | 12 | 12 | 24 | 2.6 |
| GPR7821000008 | 0.3 | 8 | 8 | 16 | 16 | 32 | 5.6 |
| GPR7821000010 | 0.4 | 10 | 10 | 20 | 20 | 40 | 13 |
| GPR7821000012 | 0.6 | 12 | 12 | 24 | 24 | 48 | 20 |
| GPR7821000016 | 1 | 16 | 16 | 32 | 32 | 64 | 48 |
| GPR7821000020 | 1.5 | 20 | 20 | 40 | 40 | 80 | 78 |
| GPR7821000022 | 2 | 22 | 22 | 44 | 44 | 88 | 127 |
| GPR7821000025 | 3 | 25 | 25 | 50 | 50 | 100 | 184 |
| GPR7821000028 | 3.6 | 28 | 28 | 54 | 56 | 106 | 250 |
