| Materiaal: | Grade 10 |
| Veiligheidsfactor: | MBL is gelijk aan 4 x WLL |
| Afwerking: | Geverfd wit |
| Gebruikstemperatuur: | -40°C tot en met +200°C |
| Certificering: | 2.1, 2.2, 3.1, MPIB |

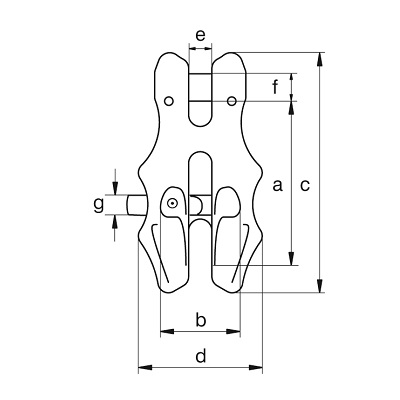

| ART.NR | WLL | a | b | c | d | e | f | g | kg | ||
| mm | inch | t | mm | mm | mm | mm | mm | mm | mm | pc | |
| GPUGCV0000006 | 6 | 7/32 | 1.4 | 51 | 23 | 75 | 42 | 7 | 8 | 7 | 0.23 |
| GPUGCV0000708 | 8 | 5/16 | 2.6 | 67 | 30 | 94 | 50 | 9 | 10 | 8 | 0.44 |
| GPUGCV0000010 | 10 | 3/8 | 4 | 79 | 38 | 116 | 63 | 12 | 13 | 12 | 0.76 |
| GPUGCV0000013 | 13 | 1/2 | 6.8 | 103 | 49 | 149 | 79 | 15 | 16 | 16 | 1.67 |
| GPUGCV0000016 | 16 | 5/8 | 10.3 | 128 | 60 | 184 | 99 | 19 | 20 | 20 | 3.1 |
| GPUGCV0000020 | 20 | 3/4 | 16 | 154 | 75 | 215 | 124 | 23 | 24 | 20 | 4 |
