| Materiaal: | Grade 5, RVS 316L |
| Veiligheidsfactor: | MBL is gelijk aan 4 x WLL |
| Afwerking: | Gepolijst |
| Gebruikstemperatuur: | -40°C tot en met +200°C |
| Certificering: | 2.1, 2.2, 3.1, MPIB, CE |

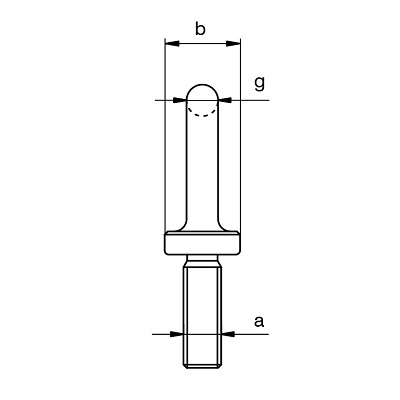

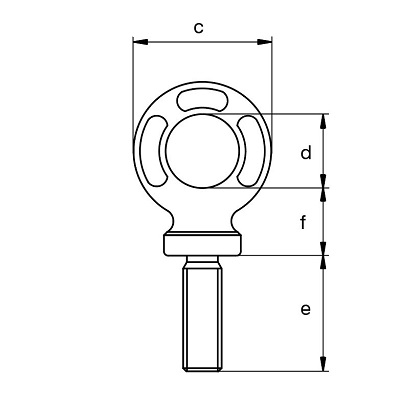

| ART.NR | WLL | a | b | c | d | e | f | g | kg |
| t | mm | mm | mm | mm | mm | mm | mm | pc | |
| GPALDINI000M8 | 0.2 | M8 x 1.25 | 20 | 34 | 20 | 13 | 17 | 7 | 0.05 |
| GPALDINI00M10 | 0.4 | M10 x 1.50 | 20 | 38 | 22 | 17 | 19 | 8 | 0.08 |
| GPALDINI00M12 | 0.6 | M12 x 1.75 | 25 | 47 | 27 | 21 | 23 | 10 | 0.14 |
| GPALDINI00M14 | 0.8 | M14 x 2.00 | 30 | 57 | 30 | 27 | 27 | 14 | 0.26 |
| GPALDINI00M16 | 1 | M16 x 2.00 | 36 | 63 | 35 | 27 | 31 | 14 | 0.37 |
| GPALDINI00M18 | 1.5 | M18 x 2.50 | 36 | 63 | 35 | 30 | 31 | 14 | 0.49 |
| GPALDINI00M20 | 2 | M20 x 2.50 | 40 | 72 | 40 | 30 | 34 | 16 | 0.55 |
| GPALDINI00M22 | 2.5 | M22 x 2.50 | 42 | 82 | 45 | 36 | 38 | 19 | 0.78 |
| GPALDINI00M24 | 3 | M24 x 3.00 | 55 | 95 | 55 | 36 | 40 | 20 | 1.12 |
