| Materiaal: | Grade 8 |
| Veiligheidsfactor: | MBL is gelijk aan 5 x WLL |
| Afwerking: | Geverfd rood of wit |
| Gebruikstemperatuur: | -40°C tot en met +200°C |
| Certificering: | 2.1, 2.2, 3.1, MPIB, CE |

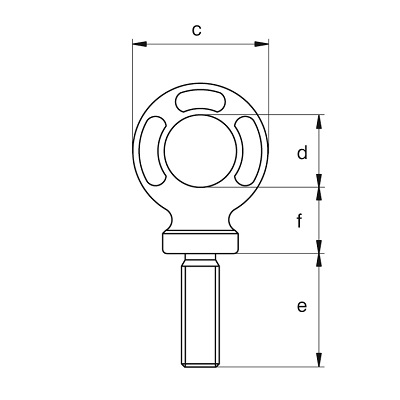

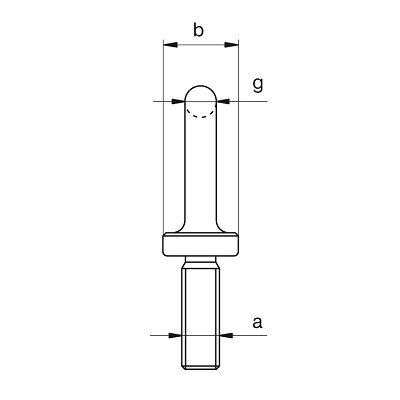

| ART.NR | WLL | a | b | c | d | e | f | g | kg |
| t | inch | mm | mm | mm | mm | mm | mm | pc | |
| GPALUNC000014 | 0.2 | 1/4 – 20UNC | 20 | 34 | 20 | 20 | 17 | 7 | 0.05 |
| GPALUNC000516 | 0.55 | 5/16 – 18UNC | 20 | 34 | 20 | 24 | 17 | 7 | 0.06 |
| GPALUNC000038 | 0.7 | 3/8 – 16UNC | 20 | 38 | 22 | 30 | 19 | 8 | 0.08 |
| GPALUNC000012 | 1 | 1/2 – 13UNC | 25 | 47 | 27 | 36 | 23 | 10 | 0.14 |
| GPALUNC000058 | 1.5 | 5/8 – 11UNC | 36 | 63 | 35 | 53 | 31 | 14 | 0.38 |
| GPALUNC000034 | 2.5 | 3/4 – 10UNC | 40 | 72 | 40 | 58 | 34 | 16 | 0.55 |
| GPALUNC000078 | 3 | 7/8 – 9UNC | 42 | 82 | 45 | 64 | 38 | 19 | 0.81 |
| GPALUNC000001 | 4 | 1 – 8UNC | 55 | 95 | 55 | 84 | 40 | 20 | 1.14 |
| GPALUNC000118 | 5 | 1 1/8 – 7UNC | 55 | 95 | 55 | 84 | 40 | 20 | 1.21 |
| GPALUNC000114 | 6 | 1 1/4 – 7UNC | 60 | 108 | 60 | 99 | 49 | 24 | 1.91 |
| GPALUNC000112 | 8 | 1 1/2 – 6UNC | 65 | 118 | 68 | 117 | 47 | 25 | 2.52 |
