| Materiaal: | Grade 5, RVS 316L |
| Veiligheidsfactor: | MBL is gelijk aan 4 x WLL |
| Afwerking: | Gepolijst |
| Gebruikstemperatuur: | -40°C tot en met +200°C |
| Certificering: | 2.1, 2.2, 3.1, MPIB |

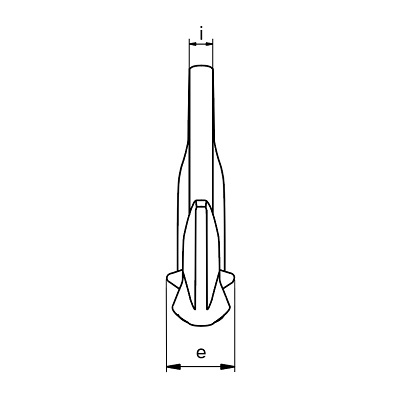

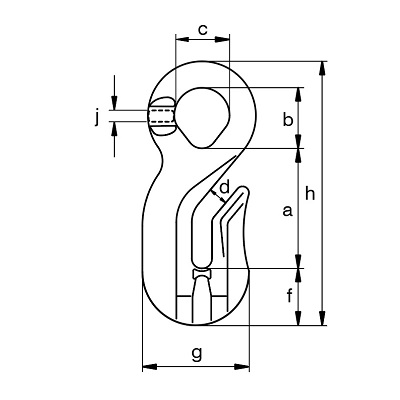

| ART.NR | WLL | a | b | c | d | e | f | g | h | i | j | kg | ||
| mm | inch | t | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | pc | |
| GPCROI0600700 | 6 | 7/32 | 0.7 | 41 | 24 | 23 | 8 | 24 | 20 | 42 | 94 | 9 | 6 | 0.25 |
| GPCROI7081200 | 7 – 8 | 1/4 – 5/16 | 1.2 | 53 | 27 | 26 | 10 | 33 | 23 | 53 | 115 | 10 | 8 | 0.32 |
| GPCROI1001600 | 10 | 3/8 | 1.6 | 65 | 38 | 36 | 12 | 40 | 29 | 66 | 146 | 14 | 10 | 0.53 |
| GPCROI1302700 | 13 | 1/2 | 2.7 | 83 | 42 | 41 | 15 | 56 | 40 | 88 | 183 | 16 | 12 | 1.96 |
