| Materiaal: | Grade 5, RVS 316L |
| Veiligheidsfactor: | MBL is gelijk aan 4 x WLL |
| Afwerking: | Gepolijst |
| Gebruikstemperatuur: | -40°C tot en met +200°C |
| Certificering: | 2.1, 2.2, 3.1, MPIB |

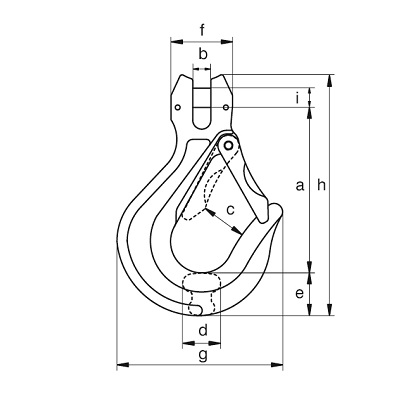

| ART.NR | WLL | a | b | c | d | e | f | g | h | i | kg | ||
| mm | inch | t | mm | mm | mm | mm | mm | mm | mm | mm | mm | pc | |
| GPCSCI0500500 | 5 | 3/16 | 0.5 | 76 | 7 | 26 | 15 | 20 | 28 | 72 | 108 | 6 | 0.29 |
| GPCSCI0600700 | 6 | 7/32 | 0.7 | 75 | 7 | 26 | 15 | 20 | 28 | 72 | 108 | 8 | 0.29 |
| GPCSCI7081200 | 7 – 8 | 1/4 – 5/16 | 1.2 | 95 | 9 | 30 | 20 | 24 | 32 | 87 | 136 | 9 | 0.58 |
| GPCSCI1001600 | 10 | 3/8 | 1.6 | 113 | 12 | 33 | 24 | 29 | 42 | 106 | 164 | 13 | 1.1 |
| GPCSCI1302700 | 13 | 1/2 | 2.7 | 138 | 15 | 37 | 32 | 39 | 54 | 133 | 208 | 16 | 1.86 |
