| Materiaal: | Grade 3 |
| Standaard: | DIN 766 en DIN 5685-3 |
| Afwerking: | Elektrolytisch verzinkt of verzinkt |
| Certificering: | 2.1 |
| Opmerking: | Niet te gebruiken voor hijstoepassingen |

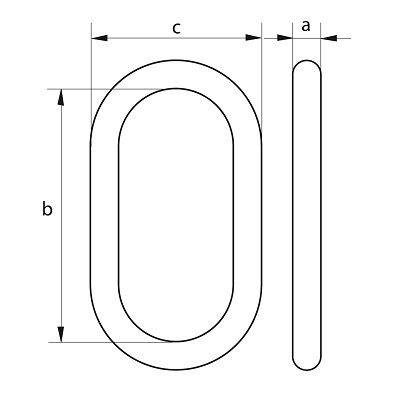

| ART.NR | ART.NR | a | b | c | kg |
| E-7631 | G-7632 | mm | mm | mm | per meter |
| GPE7631000003 | GPG7632000003 | 3 | 26 | 13 | 0.14 |
| GPE7631000004 | GPG7632000004 | 4 | 32 | 16 | 0.27 |
| GPE7631000005 | GPG7632000005 | 5 | 36 | 20 | 0.43 |
| GPE7631000006 | GPG7632000006 | 6 | 42 | 24 | 0.63 |
| GPE7631000007 | GPG7632000007 | 7 | 48 | 28 | 0.86 |
| GPE7631000008 | GPG7632000008 | 8 | 54 | 32 | 1.10 |
| GPE7631000010 | GPG7632000010 | 10 | 66 | 40 | 1.75 |
| GPE7631000013 | GPG7632000013 | 13 | 82 | 50 | 2.95 |
| GPE7631000016 | GPG7632000016 | 16 | 100 | 60 | 4.45 |
