| Materiaal: | Grade 3 |
| Standaard: | DIN 766 en DIN 5685-3 |
| Afwerking: | Elektrolytisch verzinkt of verzinkt |
| Certificering: | 2.1 |
| Opmerking: | Niet te gebruiken voor hijstoepassingen |

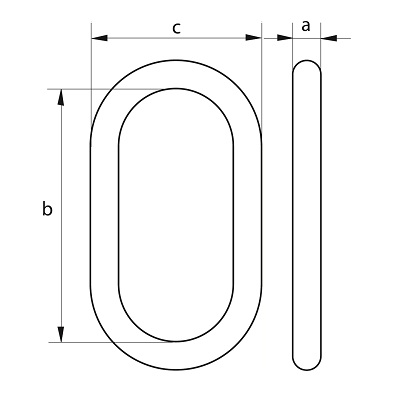

| ART.NR | ART.NR | a | b | c | kg |
| E-7661 | G-7662 | mm | mm | mm | per meter |
| GPE7661000003 | GPG7662000003 | 3 | 16 | 11 | 0.17 |
| GPE7661000004 | GPG7662000004 | 4 | 16 | 14 | 0.32 |
| GPE7661000005 | GPG7662000005 | 5 | 18.5 | 17 | 0.5 |
| GPE7661000006 | GPG7662000006 | 6 | 18.5 | 20 | 0.75 |
| GPE7661000007 | GPG7662000007 | 7 | 22 | 23 | 1 |
| GPE7661000008 | GPG7662000008 | 8 | 24 | 26 | 1.35 |
| GPE7661000009 | GPG7662000009 | 9 | 27 | 30 | 1.8 |
| GPE7661000010 | GPG7662000010 | 10 | 28 | 34 | 2.25 |
| GPE7661000011 | GPG7662000011 | 11 | 31 | 36 | 2.7 |
| GPE7661000013 | GPG7662000013 | 13 | 36 | 44 | 3.8 |
| GPE7661000016 | GPG7662000016 | 16 | 45 | 54 | 5.8 |
| GPE7661000018 | GPG7662000018 | 18 | 50 | 60 | 7.3 |
