| Materiaal: | C15 |
| Veiligheidsfactor: | MBL is gelijk aan 6 x WLL |
| Standaard: | DIN 580 |
| Afwerking: | Elektrolytisch verzinkt |
| Certificering: | 2.1, 2.2, CE |

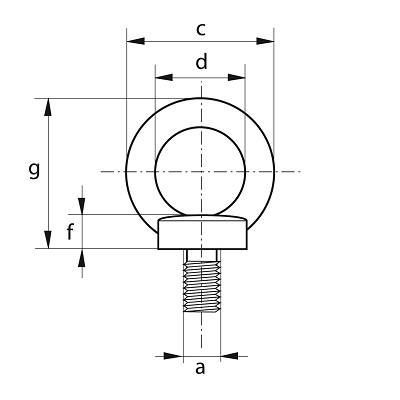

| ART.NR | t | a | b | c | d | e | f | g | kg |
| mm | mm | mm | mm | mm | mm | mm | pc | ||
| GPE8140000M06 | 0.07 | M 6 x 1.00 | 20 | 36 | 20 | 13 | 6 | 36 | 5.1 |
| GPE8140000M08 | 0.14 | M 8 x 1.25 | 20 | 36 | 20 | 13 | 6 | 36 | 5.5 |
| GPE8140000M10 | 0.23 | M 10 x 1.50 | 25 | 45 | 25 | 17 | 8 | 45 | 10.3 |
| GPE8140000M12 | 0.34 | M 12 x 1.75 | 30 | 54 | 30 | 20.5 | 10 | 53 | 16.9 |
| GPE8140000M14 | 0.49 | M 14 x 2.00 | 35 | 63 | 35 | 27 | 12 | 60 | 29.9 |
| GPE8140000M16 | 0.7 | M 16 x 2.00 | 35 | 63 | 35 | 27 | 12 | 62 | 30.7 |
| GPE8140000M18 | 0.9 | M 18 x 2.50 | 40 | 72 | 40 | 30 | 14 | 71 | 42.8 |
| GPE8140000M20 | 1.2 | M 20 x 2.50 | 40 | 72 | 40 | 30 | 14 | 71 | 42.4 |
| GPE8140000M22 | 1.5 | M 22 x 2.50 | 45 | 81 | 45 | 39 | 14 | 80 | 62.8 |
| GPE8140000M24 | 1.8 | M 24 x 3.00 | 50 | 90 | 50 | 36 | 18 | 90 | 90.8 |
| GPE8140000M27 | 2.5 | M 27 x 3.00 | 50 | 90 | 50 | 39 | 18 | 90 | 88.3 |
| GPE8140000M30 | 3.2 | M 30 x 3.50 | 65 | 108 | 60 | 45 | 22 | 109 | 159 |
| GPE8140000M33 | 4.3 | M 33 x 3.50 | 65 | 108 | 60 | 45 | 22 | 110 | 167 |
| GPE8140000M36 | 4.6 | M 36 x 4.00 | 75 | 126 | 70 | 54 | 26 | 128 | 235 |
| GPE8140000M39 | 6.1 | M 39 x 4.00 | 75 | 126 | 70 | 54 | 26 | 130 | 266 |
| GPE8140000M42 | 6.3 | M 42 x 4.50 | 85 | 144 | 80 | 63 | 30 | 147 | 403 |
| GPE8140000M45 | 8 | M 45 x 4.50 | 85 | 144 | 80 | 63 | 35 | 150 | 521 |
| GPE8140000M48 | 8.6 | M 48 x 5.00 | 100 | 166 | 90 | 68 | 35 | 168 | 632 |
| GPE8140000M56 | 11.5 | M 56 x 5.50 | 110 | 184 | 100 | 78 | 38 | 187 | 879 |
| GPE8140000M64 | 16 | M 64 x 6.00 | 120 | 206 | 110 | 90 | 42 | 208 | 1240 |
| GPE8140000M72 | 20 | M 72 x 6.00 | 150 | 260 | 140 | 100 | 50 | 260 | 2293 |
| GPE8140000M80 | 28 | M 80 x 6.00 | 170 | 296 | 160 | 112 | 55 | 298 | 3200 |
| GPE814000M100 | 40 | M 100 x 6.00 | 190 | 330 | 180 | 130 | 60 | 330 | 4800 |
