| Materiaal: | C15 |
| Veiligheidsfactor: | MBL is gelijk aan 6 x WLL |
| Standaard: | DIN 582 |
| Afwerking: | Elektrolytisch verzinkt |
| Certificering: | 2.1, 2.2, CE |

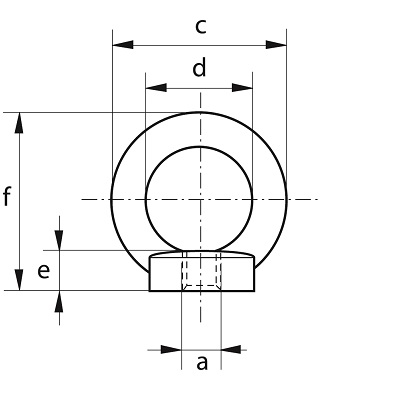

| ART.NR | t | a | b | c | d | e | f | kg |
| mm | mm | mm | mm | mm | mm | pc | ||
| GPE8142000M06 | 0.07 | M 6 x 1.00 | 20 | 36 | 20 | 8.5 | 36 | 5.1 |
| GPE8142000M08 | 0.14 | M 8 x 1.25 | 20 | 36 | 20 | 8.5 | 36 | 5.2 |
| GPE8142000M10 | 0.23 | M 10 x 1.50 | 25 | 45 | 25 | 10 | 45 | 9.4 |
| GPE8142000M12 | 0.34 | M 12 x 1.75 | 30 | 54 | 30 | 11 | 53 | 16 |
| GPE8142000M14 | 0.49 | M 14 x 2.00 | 35 | 63 | 35 | 13 | 60 | 25.5 |
| GPE8142000M16 | 0.7 | M 16 x 2.00 | 35 | 63 | 35 | 13 | 62 | 24 |
| GPE8142000M18 | 0.9 | M 18 x 2.50 | 40 | 72 | 40 | 16 | 71 | 36 |
| GPE8142000M20 | 1.2 | M 20 x 2.50 | 40 | 72 | 40 | 16 | 71 | 35.2 |
| GPE8142000M22 | 1.5 | M 22 x 2.50 | 45 | 81 | 45 | 18 | 80 | 51.7 |
| GPE8142000M24 | 1.8 | M 24 x 3.00 | 50 | 90 | 50 | 20 | 90 | 75.4 |
| GPE8142000M27 | 2.5 | M 27 x 3.00 | 50 | 90 | 50 | 20 | 90 | 102 |
| GPE8142000M30 | 3.2 | M 30 x 3.50 | 65 | 108 | 60 | 25 | 109 | 125 |
| GPE8142000M33 | 4.3 | M 33 x 3.50 | 65 | 108 | 60 | 25 | 110 | 131 |
| GPE8142000M36 | 4.6 | M 36 x 4.00 | 75 | 126 | 70 | 30 | 128 | 208 |
| GPE8142000M39 | 6.1 | M 39 x 4.00 | 75 | 126 | 70 | 30 | 130 | 210 |
| GPE8142000M42 | 6.3 | M 42 x 4.50 | 85 | 144 | 80 | 35 | 147 | 305 |
| GPE8142000M45 | 8 | M 45 x 4.50 | 85 | 144 | 80 | 35 | 150 | 407 |
| GPE8142000M48 | 8.6 | M 48 x 5.00 | 100 | 166 | 90 | 40 | 168 | 502 |
| GPE8142000M52 | 8.6 | M 52 x 5.00 | 110 | 184 | 100 | 45 | 187 | 830 |
| GPE8142000M56 | 11.5 | M 56 x 5.50 | 110 | 184 | 100 | 45 | 187 | 669 |
| GPE8142000M64 | 16 | M 64 x 6.00 | 120 | 206 | 110 | 50 | 208 | 930 |
| GPE8142000M72 | 21 | M 72 x 6.00 | 150 | 260 | 140 | 60 | 260 | 1500 |
