| Materiaal: | Hoogwaardig staal, gedoofd en gehard |
| Veiligheidsfactor: | MBL is gelijk aan 5 x WLL |
| Standaard: | US Federal Spec. RR-C-271, Type VII, Class 3 |
| Afwerking: | Verzinkt |
| Certificering: | 2.1, 2.2 |

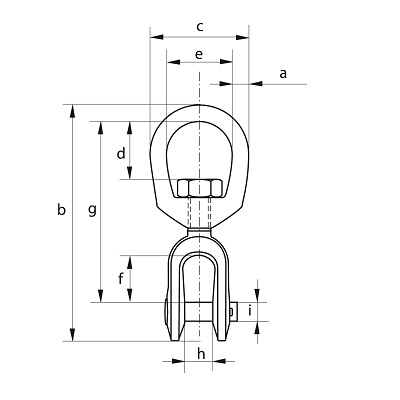

| ART.NR | WLL | a | b | c | d | e | f | g | h | i | kg |
| t | mm | mm | mm | mm | mm | mm | mm | mm | mm | pc | |
| GPG7723000390 | 0.39 | 6 | 84 | 32 | 18 | 19 | 22 | 67 | 12 | 6 | 0.09 |
| GPG7723000570 | 0.57 | 8 | 98 | 41 | 21 | 25 | 22 | 75 | 13 | 8 | 0.16 |
| GPG7723001020 | 1.02 | 10 | 121 | 51 | 24 | 32 | 27 | 92 | 16 | 10 | 0.32 |
| GPG7723001600 | 1.6 | 13 | 154 | 64 | 33 | 38 | 33 | 114 | 19 | 13 | 0.57 |
| GPG7723002400 | 2.4 | 16 | 186 | 76 | 40 | 44 | 38 | 135 | 24 | 16 | 1.12 |
| GPG7723003300 | 3.3 | 19 | 211 | 89 | 44 | 51 | 44 | 154 | 29 | 19 | 1.76 |
| GPG7723004500 | 4.5 | 22 | 242 | 102 | 52 | 57 | 52 | 178 | 30 | 22 | 2.66 |
| GPG7723005700 | 5.7 | 25 | 290 | 114 | 59 | 64 | 71 | 217 | 44 | 29 | 4.02 |
| GPG7723008200 | 8.2 | 32 | 329 | 143 | 68 | 80 | 71 | 230 | 52 | 35 | 7.14 |
| GPG7723020500 | 20.5 | 38 | 501 | 178 | 106 | 102 | 113 | 364 | 73 | 50 | 24.8 |
