| Materiaal: | Grade 8 |
| Veiligheidsfactor: | MBL is gelijk aan 4 x WLL |
| Standaard: | EN 1677-1 en DIN 5692 |
| Afwerking: | Geverfd wit |
| Gebruikstemperatuur: | -40°C tot en met +200°C |
| Certificering: | 2.1, 2.2, 3.1, MPIB |

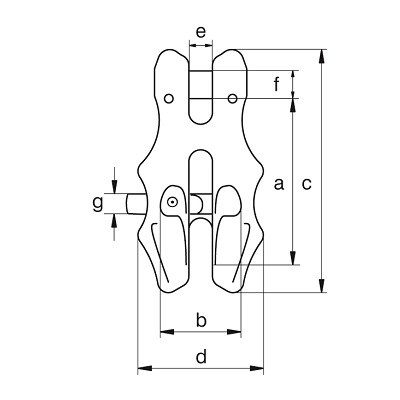

| ART.NR | WLL | a | b | c | d | e | f | g | kg | ||
| mm | inch | t | mm | mm | mm | mm | mm | mm | mm | pc | |
| GPGCV00000006 | 6 | 7/32 | 1.12 | 51 | 23 | 75 | 42 | 7 | 8 | 7 | 0.22 |
| GPGCV00000708 | 8 | 1/4 – 5/16 | 2 | 67 | 30 | 94 | 50 | 9 | 9 | 8 | 0.41 |
| GPGCV00000010 | 10 | 3/8 | 3.2 | 79 | 38 | 116 | 63 | 12 | 13 | 12 | 0.82 |
| GPGCV00000013 | 13 | 1/2 | 5.4 | 103 | 49 | 149 | 79 | 15 | 16 | 16 | 1.67 |
| GPGCV00000016 | 16 | 5/8 | 8.2 | 128 | 60 | 184 | 99 | 19 | 20 | 20 | 3.1 |
| GPGCV00001820 | 20 | 3/4 | 12.8 | 154 | 75 | 215 | 124 | 23 | 24 | 20 | 4.02 |
