| Materiaal: | Grade 8 |
| Veiligheidsfactor: | MBL is gelijk aan 4 x WLL |
| Afwerking: | Geverfd wit |
| Gebruikstemperatuur: | -40°C tot en met +200°C |
| Certificering: | 2.1, 2.2, MPIB |
| Opmerking: | Voorzien van naald lager t.b.v. het wartelen onder last |

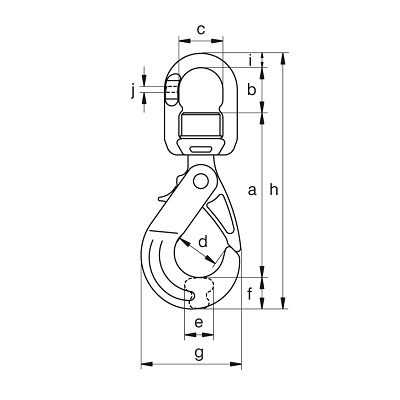

| ART.NR | WLL | a | b | c | d | e | f | g | h | i | j | kg | ||
| mm | inch | t | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | pc | |
| GPGKE08002000 | 7 – 8 | 1/4 – 5/16 | 2 | 122 | 33 | 32 | 32 | 17 | 25 | 77 | 192 | 12 | 6 | 0.77 |
| GPGKE10003200 | 10 | 3/8 | 3.2 | 148 | 40 | 37 | 43 | 24 | 29 | 92 | 231 | 14 | 8 | 1.38 |
| GPGKE13005400 | 13 | 1/2 | 5.4 | 185 | 47 | 48 | 47 | 32 | 34 | 111 | 282 | 16 | 11 | 2.56 |
| GPGKE16008200 | 16 | 5/8 | 8.2 | 213 | 60 | 58 | 61 | 37 | 46 | 142 | 339 | 21 | 14 | 4.58 |
| GPGKE20012800 | 18 – 20 | 3/4 | 12.8 | 268 | 62 | 73 | 74 | 43 | 57 | 185 | 417 | 25 | 17 | 9.51 |
| GPGKE22015500 | 22 | 7/8 | 15.5 | 305 | 88 | 82 | 90 | 52 | 62 | 207 | 480 | 25 | 22 | 12.85 |
