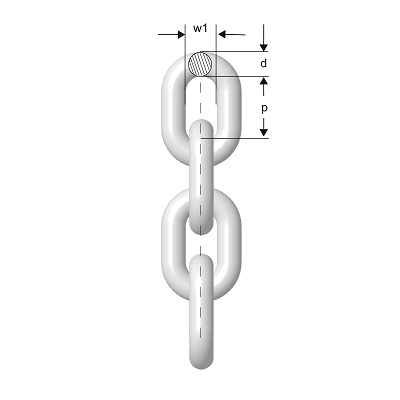

| Code | WLL | d | p | w1 | KG | MPF | MBL |
| t | nom. | mm | mm | pc | mm | kN | |
| KLZ-6-8 HDG | 1.12 | 6.6 | 18 | 8.9 | 1 | 36.8 | 45.2 |
| KLZ-8-8 HDG | 2 | 8.8 | 24 | 11.2 | 1.7 | 63 | 80.6 |
| KLZ-10-8 HDG | 3.2 | 11 | 30 | 14.4 | 2.6 | 98.8 | 130 |
| KLZ-13-8 HDG | 5.4 | 14.3 | 39 | 19.2 | 4.5 | 166 | 214 |
| KLZ-16-8 HDG | 8.2 | 17.3 | 48 | 23 | 6.7 | 251 | 322 |
| Code | WLL | d | p | w1 | KG | MPF | MBL |
| t | nom. | mm | mm | pc | mm | kN | |
| KLZ-6-8 HDG | 1.12 | 6.6 | 18 | 8.9 | 1 | 36.8 | 45.2 |
| KLZ-8-8 HDG | 2 | 8.8 | 24 | 11.2 | 1.7 | 63 | 80.6 |
| KLZ-10-8 HDG | 3.2 | 11 | 30 | 14.4 | 2.6 | 98.8 | 130 |
| KLZ-13-8 HDG | 5.4 | 14.3 | 39 | 19.2 | 4.5 | 166 | 214 |
| KLZ-16-8 HDG | 8.2 | 17.3 | 48 | 23 | 6.7 | 251 | 322 |
