| Materiaal: | Grade 8, gelegeerde staal, gedoofd en gehard |
| Veiligheidsfactor: | MBL is gelijk aan 4 x WLL |
| Standaard: | EN 1677-1 |
| Afwerking: | Geverfd wit |
| Gebruikstemperatuur: | -40°C tot en met +200°C |
| Certificering: | 2.1, 2.2, 3.1, MPIB, DGUV |

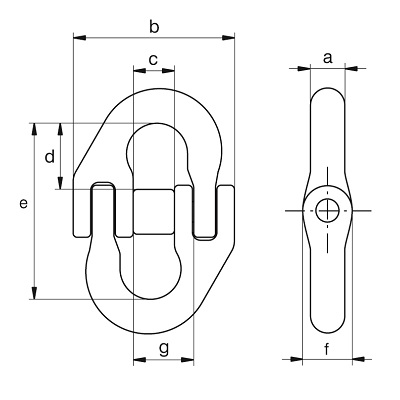

| ART.NR | WLL | a | b | c | d | e | f | g | kg | ||
| mm | inch | t | mm | mm | mm | mm | mm | mm | mm | pc | |
| GPMJ006001120 | 6 | 7/32 | 1.12 | 8 | 42 | 11 | 20 | 52 | 11 | 15 | 0.09 |
| GPMJ008002000 | 7-8 | 1/4 – 5/16 | 2 | 9 | 53 | 14 | 20 | 55 | 13 | 19 | 0.15 |
| GPMJ010003200 | 10 | 3/8 | 3.2 | 10 | 66 | 18 | 23 | 64 | 18 | 23 | 0.28 |
| GPMJ013005400 | 13 | 1/2 | 5.4 | 14 | 83 | 21 | 32 | 85 | 24 | 28 | 0.63 |
| GPMJ016008200 | 16 | 5/8 | 8.2 | 17 | 103 | 25 | 40 | 105 | 28 | 34 | 1.16 |
| GPMJ020012800 | 18-20 | 3/4 | 12.8 | 21 | 120 | 33 | 50 | 129 | 33 | 42 | 1.95 |
| GPMJ022015500 | 22 | 7/8 | 15.5 | 23 | 143 | 40 | 55 | 140 | 37 | 51 | 2.94 |
| GPMJ026021600 | 26 | 1 | 21.6 | 26 | 160 | 45 | 60 | 153 | 46 | 57 | 4.12 |
| GPMJ032032800 | 32 | 1 1/4 | 32.8 | 39 | 197 | 52 | 68 | 174 | 56 | 67 | 8.3 |
