| Materiaal: | Grade 5, RVS 316L |
| Veiligheidsfactor: | MBL is gelijk aan 4 x WLL |
| Afwerking: | Gepolijst |
| Gebruikstemperatuur: | -40°C tot en met +200°C |
| Certificering: | 2.1, 2.2, 3.1 |

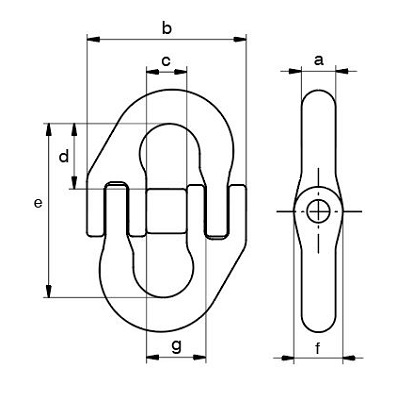

| ART.NR | WLL | a | b | c | d | e | f | g | kg | ||
| mm | inch | t | mm | mm | mm | mm | mm | mm | mm | pc | |
| GPMJI06000700 | 6 | 7/32 | 0.7 | 8 | 42 | 11 | 20 | 52 | 11 | 15 | 0.09 |
| GPMJI07081200 | 7 – 8 | 1/4 – 5/16 | 1.2 | 9 | 53 | 14 | 20 | 55 | 13 | 19 | 0.16 |
| GPMJI10001600 | 10 | 3/8 | 1.6 | 10 | 66 | 18 | 23 | 64 | 18 | 23 | 0.28 |
| GPMJI13002700 | 13 | 1/2 | 2.7 | 14 | 83 | 21 | 32 | 85 | 24 | 28 | 0.64 |
