| Materiaal: | Grade 5, RVS 316L |
| Veiligheidsfactor: | MBL is gelijk aan 5 x WLL |
| Afwerking: | Gepolijst |
| Gebruikstemperatuur: | -40°C tot en met +200°C |
| Certificering: | 2.1, 2.2, 3.1, CE |
| Opmerking: | Gemarkeerd met WLL en CE |

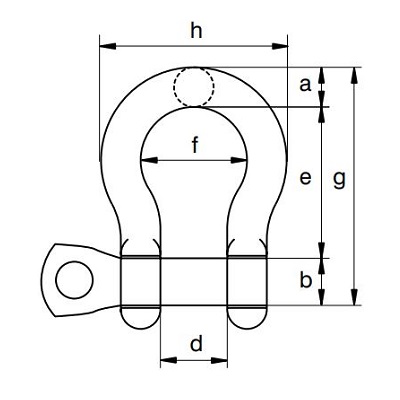

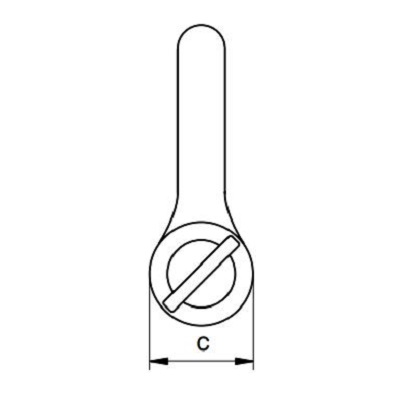

| ART.NR | WLL | a | b | c | d | e | f | g | h | kg |
| t | mm | mm | mm | mm | mm | mm | mm | mm | pc | |
| GPMLVI0000008 | 0.4 | 8 | 8 | 16 | 16 | 32 | 25 | 56 | 41 | 0.06 |
| GPMLVI0000010 | 0.6 | 10 | 10 | 19 | 20 | 40 | 28 | 67 | 48 | 0.12 |
| GPMLVI0000012 | 0.9 | 12 | 12 | 24 | 25 | 48 | 36 | 79 | 59 | 0.2 |
| GPMLVI0000013 | 1.5 | 13 | 16 | 31 | 24 | 52 | 35 | 87 | 60 | 0.32 |
| GPMLVI0000016 | 2.5 | 16 | 20 | 38 | 28 | 64 | 42 | 108 | 71 | 0.58 |
| GPMLVI0000019 | 3 | 19 | 22 | 44 | 32 | 72 | 50 | 125 | 87 | 0.96 |
| GPMLVI0000022 | 4 | 22 | 25 | 50 | 37 | 74 | 60 | 145 | 101 | 1.46 |
| GPMLVI0000025 | 6 | 25 | 30 | 57 | 40 | 94 | 67 | 157 | 115 | 2.09 |
