| Materiaal: | Grade 8, gelegeerde staal, gedoofd en gehard |
| Veiligheidsfactor: | MBL is gelijk aan 4 x WLL |
| Standaard: | EN 1677-4 |
| Afwerking: | Geverfd wit |
| Gebruikstemperatuur: | -40°C tot en met +200°C |
| Certificering: | 2.1, 2.2, 3.1, MPIB |

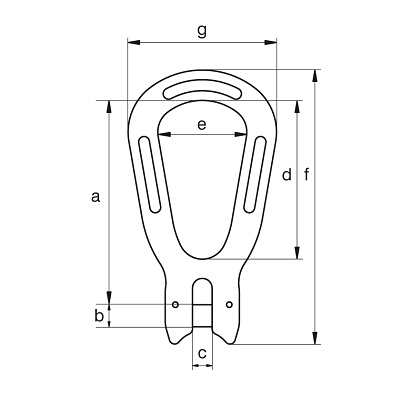

| ART.NR | WLL | a | b | c | d | e | f | g | kg | ||
| mm | inch | t | mm | mm | mm | mm | mm | mm | mm | pc | |
| GPMP005000800 | 5 | 3/16 | 0.8 | 85 | 6 | 7 | 64 | 33 | 109 | 55 | 0.14 |
| GPMP006001120 | 6 | 7/32 | 1.12 | 84 | 8 | 7 | 64 | 33 | 109 | 55 | 0.14 |
| GPMP008002000 | 7-8 | 1/4 – 5/16 | 2 | 101 | 9 | 9 | 77 | 40 | 132 | 69 | 0.34 |
| GPMP010003200 | 10 | 3/8 | 3.2 | 125 | 13 | 12 | 97 | 50 | 165 | 84 | 0.77 |
| GPMP013005400 | 13 | 1/2 | 5.4 | 161 | 16 | 15 | 125 | 66 | 213 | 110 | 1.62 |
| GPMP016008200 | 16 | 5/8 | 8.2 | 198 | 20 | 19 | 154 | 84 | 262 | 140 | 2.72 |
| GPMP020012800 | 18-20 | 3/4 | 12.8 | 253 | 24 | 23 | 198 | 104 | 331 | 166 | 4.28 |
