| Materiaal: | Grade 5, RVS 316L |
| Veiligheidsfactor: | MBL is gelijk aan 4 x WLL |
| Afwerking: | Gepolijst |
| Gebruikstemperatuur: | -40°C tot en met +200°C |
| Certificering: | 2.1, 2.2, 3.1, MTCB |
| diameter | |||||||||||
| chain | |||||||||||
| 2 legs | |||||||||||

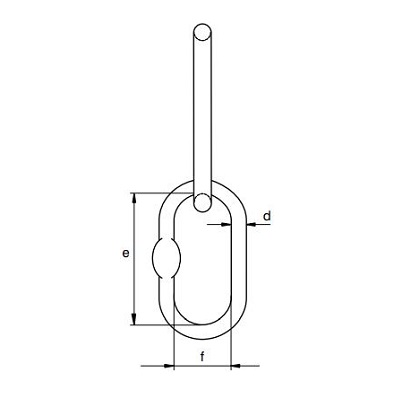

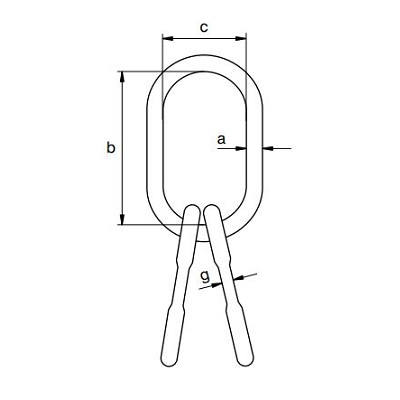

| ART.NR | a | ß ≤ 45° | ß ≤ 60° | WLL | b | c | d | e | f | g | kg |
| mm | mm | mm | t | mm | mm | mm | mm | mm | mm | pc | |
| GPMTSI1801600 | 18 | 6 | 6 | 1.6 | 135 | 75 | 13 | 54 | 25 | 6 | 1.17 |
| GPMTSI2202650 | 22 | 8 | 8 | 2.65 | 160 | 90 | 16 | 70 | 34 | 8 | 2.17 |
| GPMTSI2604250 | 26 | 10 | 10 | 4.25 | 180 | 100 | 18 | 85 | 40 | 8 | 3.34 |
| GPMTSI3206700 | 32 | 13 | 13 | 6.7 | 200 | 110 | 22 | 115 | 50 | 13 | 5.99 |
