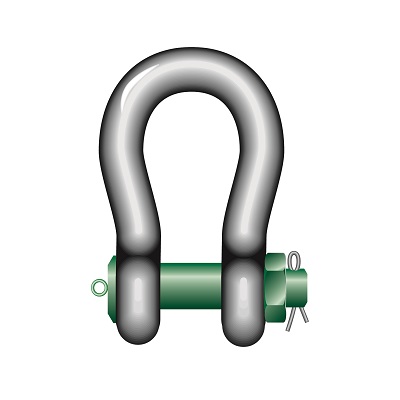

P-6036 Green Pin® Heavy Duty Harpmoerbout sluiting

Materiaal: Grade 8
Veiligheidsfactor: MBL is gelijk aan 5 x WLL
Standaard: ASME B30.26
Afwerking: beugel zilver geverfd, pen groen geverfd (120 tons sluiting verzinkt)
Certificering: 2.1, 2.2, 3.1, MTCa, MTCb, LROS, MPIa, USa, CE

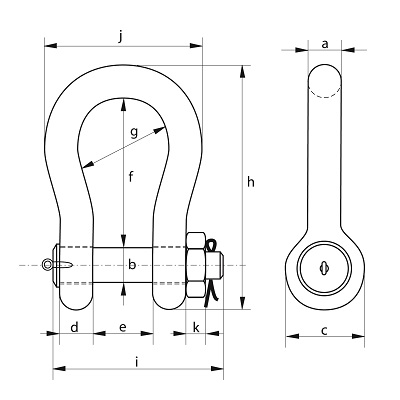

ART.NR WLL a b c d e f g h i j k
Ton mm mm mm mm mm mm mm mm mm mm mm kg/pc
GPP60360120000 120 95 95 208 95 147 400 238 647 453 428 50 110
GPP60360150000 150 105 108 238 105 169 410 275 688 496 485 50 160
GPP60360200000 200 120 130 279 120 179 513 290 838 564 530 70 235
GPP60360250000 250 130 140 299 130 205 554 305 904 614 565 70 295
GPP60360300000 300 140 150 325 140 205 618 305 996 644 585 80 368
GPP60360400000 400 170 175 376 164 231 668 325 1114 690 665 70 560
GPP60360500000 500 180 185 398 164 256 718 350 1190 720 710 70 685
GPP60360600000 600 200 205 444 189 282 718 375 1243 810 775 70 880
GPP60360700000 700 210 215 454 204 308 718 400 1263 870 820 70 980
GPP60360800000 800 210 220 464 204 308 718 400 1270 870 820 70 1100
GPP60360900000 900 220 230 485 215 328 718 420 1296 920 860 70 1280
GPP60361000000 1000 240 240 515 215 349 718 420 1336 940 900 70 1460
GPP60361250000 1250 260 270 585 230 369 768 450 1456 1025 970 70 1990
GPP60361500000 1500 280 290 625 230 369 818 450 1556 1025 1010 70 2400
