| Materiaal: | Koolstof en gelegeerd staal |
| Veiligheidsfactor: | MBL is gelijk aan 5 x WLL |
| Standaard: | EN 13155, ASME B30.20-2010 en AS 4991 |
| Afwerking: | Geverfd |
| Gebruikstemperatuur: | -40°C tot en met +100°C |
| Certificering: | 2.1, 2.2, MTCA, CE |

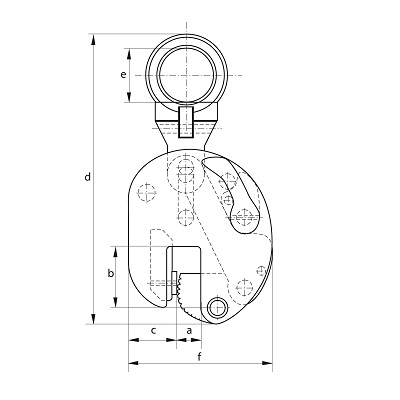

| ART.NR | WLL | a | b | c | d | e | f | g | h | kg | |
| type | t | mm | mm | mm | mm | mm | mm | mm | mm | pc | |
| GPP6625000750 | 0.75 U | 0.75 | 0-13 | 47 | 37 | 203 | 30 | 100 | 37 | 10 | 1.8 |
| GPP6625002000 | 2 U | 2 | 0-35 | 78 | 56 | 372 | 70 | 183 | 56 | 16 | 8 |
| GPP6625003000 | 3 U | 3 | 0-35 | 78 | 56 | 372 | 70 | 183 | 56 | 16 | 8 |
| GPP6625006000 | 6 U | 6 | 0-50 | 114 | 82 | 527 | 78 | 259 | 78 | 32 | 24 |
| GPP6625007500 | 7.5 U | 7.5 | 0-55 | 111 | 70 | 560 | 78 | 267 | 86 | 32 | 28 |
| GPP6625009000 | 9 U | 9 | 0-55 | 111 | 70 | 560 | 78 | 267 | 86 | 32 | 29 |
| GPP6625012000 | 12 U | 12 | 0-52 | 148 | 100 | 648 | 85 | 295 | 94 | 48 | 41 |
