| Materiaal: | Koolstof en gelegeerd staal |
| Veiligheidsfactor: | MBL is gelijk aan 5 x WLL |
| Standaard: | EN 13155, ASME B30.20-2010 en AS 4991 |
| Afwerking: | Geverfd |
| Gebruikstemperatuur: | -40°C tot en met +100°C |
| Certificering: | 2.1, 2.2, MTCA, CE |

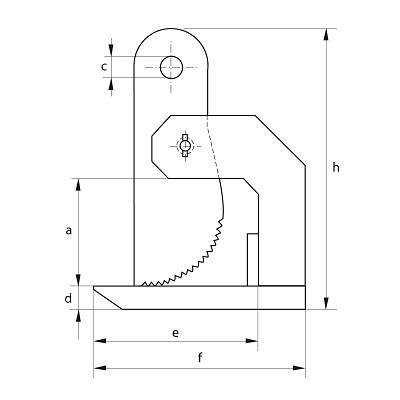

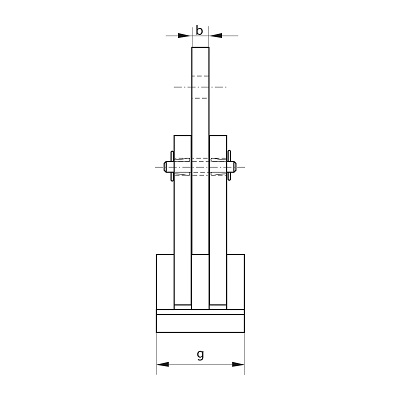

| ART.NR | WLL per set | a | b | c | d | e | f | g | h | kg | |
| type | t | mm | mm | mm | mm | mm | mm | mm | mm | pc | |
| GPP6635002000 | 2 H | 2 | 0-60 | 16 | 30 | 15 | 118 | 180 | 90 | 287 | 7 |
| GPP6635003000 | 3 H | 3 | 0-60 | 16 | 30 | 20 | 118 | 180 | 90 | 291 | 8 |
| GPP6635004000 | 4 H | 4 | 0-60 | 20 | 30 | 25 | 145 | 220 | 105 | 304 | 13 |
| GPP6635006000 | 6 H | 6 | 0-60 | 20 | 30 | 25 | 145 | 220 | 110 | 307 | 14 |
| GPP6635008000 | 8 H | 8 | 0-60 | 30 | 30 | 35 | 135 | 225 | 120 | 336 | 19 |
| GPP6635010000 | 10 H | 10 | 0-60 | 30 | 30 | 35 | 135 | 225 | 120 | 336 | 19 |
| GPP6635015000 | 15 H | 15 | 0-60 | 35 | 43 | 35 | 147 | 262 | 160 | 344 | 30 |
| GPP6635025000 | 18 H | 25 | 0-60 | 35 | 43 | 40 | 147 | 262 | 175 | 349 | 33 |
