| Materiaal: | Koolstof en gelegeerd staal |
| Veiligheidsfactor: | MBL is gelijk aan 5 x WLL |
| Standaard: | EN 13155, ASME B30.20-2010 en AS 4991 |
| Afwerking: | Geverfd |
| Gebruikstemperatuur: | -40°C tot en met +100°C |
| Certificering: | 2.1, 2.2, MTCA, CE |

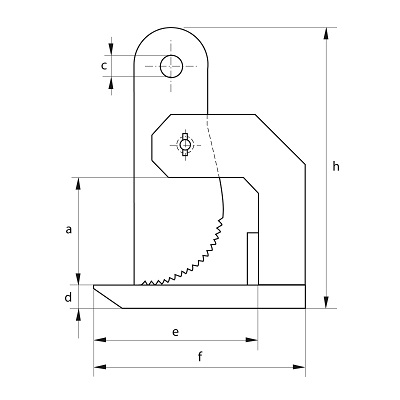

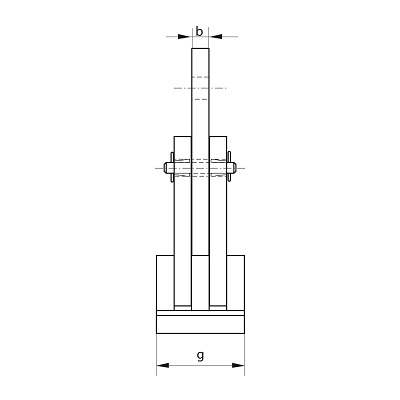

| ART.NR | WLL per set | a | b | c | d | e | f | g | h | ||
| type | t | mm | mm | mm | mm | mm | mm | mm | mm | kg | |
| GPP6636003000 | 3 HE | 3 | 0-100 | 15 | 30 | 20 | 120 | 180 | 90 | 387 | 10 |
| GPP6636004000 | 4 HE | 4 | 0-100 | 20 | 30 | 25 | 145 | 220 | 105 | 414 | 15 |
| GPP6636006000 | 6 HE | 6 | 0-100 | 20 | 30 | 25 | 145 | 220 | 120 | 414 | 16.5 |
| GPP6636008000 | 8 HE | 8 | 0-100 | 30 | 30 | 35 | 135 | 225 | 120 | 428 | 21 |
| GPP6636010000 | 10 HE | 10 | 0-100 | 30 | 30 | 35 | 135 | 225 | 120 | 428 | 22 |
| GPP6636015000 | 15 HE | 15 | 0-150 | 35 | 45 | 35 | 240 | 350 | 140 | 665 | 53 |
