| Materiaal: | Grade 8 |
| Veiligheidsfactor: | MBL is gelijk aan 5 x WLL |
| Afwerking: | Geverfd rood |
| Certificering: | 2.1, 2.2, 3.1 |

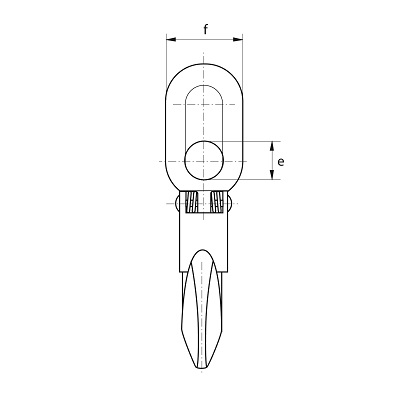

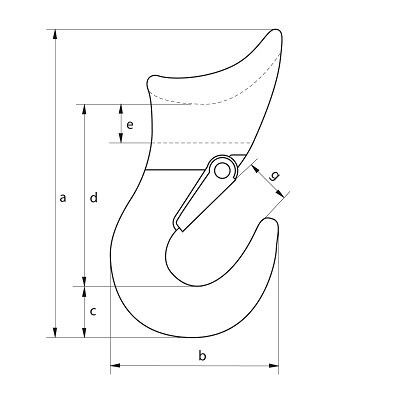

| ART.NR | WLL | a | b | c | d | e | f | g | kg | |
| t | mm | mm | mm | mm | mm | mm | mm | mm | pc | |
| GPP6706A00800 | 0.8 | 6 – 11 | 112 | 63 | 19 | 65 | 14 | 30 | 16 | 0.4 |
| GPP6706A01600 | 1.6 | 10 – 13 | 143 | 82 | 26 | 83 | 17 | 30 | 19 | 0.8 |
| GPP6706A02500 | 2.5 | 14 – 16 | 170 | 98 | 30 | 97 | 19 | 33 | 25 | 1.2 |
| GPP6706A03200 | 3.2 | 16 – 20 | 196 | 115 | 36 | 110 | 22 | 40 | 28 | 1.9 |
| GPP6706A05400 | 5.4 | 22 – 26 | 260 | 142 | 46 | 145 | 36 | 60 | 35 | 4.2 |
