| Materiaal: | Grade 8 |
| Veiligheidsfactor: | MBL is gelijk aan 4 x WLL |
| Standaard: | EN 1677-2 |
| Afwerking: | Geverfd rood |
| Certificering: | 2.1, 2.2, 3.1 |

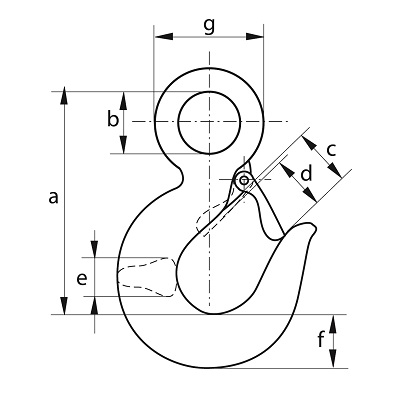

| ART.NR | WLL | a | b | c | d | e | f | g | kg |
| t | mm | mm | mm | mm | mm | mm | mm | pc | |
| GPP6714A01250 | 1.25 | 81 | 19 | 24 | 20 | 16 | 19 | 37 | 0.3 |
| GPP6714A01600 | 1.6 | 91 | 22 | 26 | 22 | 18 | 22 | 45 | 0.44 |
| GPP6714A02500 | 2.5 | 105 | 27 | 32 | 27 | 20 | 27 | 52 | 0.63 |
| GPP6714A03200 | 3.2 | 124 | 32 | 34 | 30 | 24 | 31 | 62 | 1.27 |
| GPP6714A05400 | 5.4 | 147 | 39 | 44 | 37 | 31 | 36 | 74 | 1.76 |
| GPP6714A08200 | 8.2 | 190 | 50 | 55 | 48 | 37 | 48 | 96 | 3.6 |
| GPP6714A12800 | 12.8 | 230 | 64 | 64 | 53 | 48 | 61 | 126 | 7.7 |
| GPP6714A16000 | 16 | 254 | 70 | 70 | 60 | 58 | 69 | 139 | 10.8 |
| GPP6714A22000 | 22 | 316 | 89 | 91 | 77 | 63 | 81 | 169 | 16.7 |
