| Materiaal: | Grade 8, gelegeerde staal |
| Veiligheidsfactor: | MBL is gelijk aan 5 x WLL |
| Standaard: | DNV 2.7-1, EN 12079-2 en EN 1677-4 |
| Afwerking: | Geverfd oranje |
| Gebruikstemperatuur: | -20°C tot en met +200°C |
| Certificering: | 2.1, 2.2, 3.1, MTCB, DNV GL 2.7-1A |

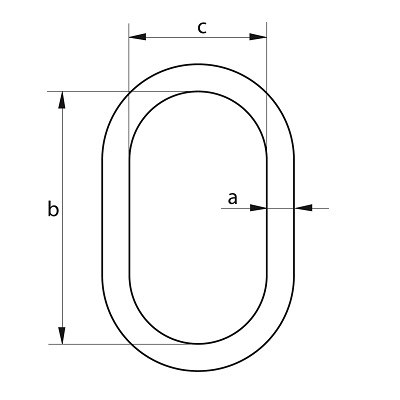

| ART.NR | WLL | a | b | c | kg |
| t | mm | mm | mm | pc | |
| GPP6810004100 | 4.1 | 16 | 150 | 75 | 0.72 |
| GPP6810005800 | 5.8 | 22 | 270 | 140 | 2.3 |
| GPP6810008830 | 8.83 | 26 | 270 | 140 | 3.3 |
| GPP6810014500 | 14.5 | 28 | 200 | 110 | 3 |
| GPP6810014501 | 14.5 | 28 | 270 | 140 | 3.8 |
| GPP6810017100 | 17.1 | 32 | 270 | 140 | 5.1 |
| GPP6810023000 | 23.0 | 36 | 270 | 140 | 6.5 |
| GPP6810028100 | 28.1 | 40 | 280 | 155 | 8.5 |
| GPP6810038300 | 38.3 | 45 | 320 | 175 | 12.2 |
| GPP6810045000 | 45 | 50 | 350 | 195 | 16.6 |
| GPP6810075000 | 75 | 65 | 410 | 220 | 33.2 |
| GPP6810100000 | 100 | 75 | 450 | 250 | 49.3 |
