| Materiaal: | Grade 8, gelegeerde staal |
| Veiligheidsfactor: | MBL is gelijk aan 5 x WLL |
| Standaard: | DNV 2.7-1, EN 12079-2 en EN 1677-4 |
| Afwerking: | Geverfd oranje |
| Gebruikstemperatuur: | -20°C tot en met +200°C |
| Certificering: | 2.1, 2.2, 3.1, MTCB, DNV GL 2.7-1A |

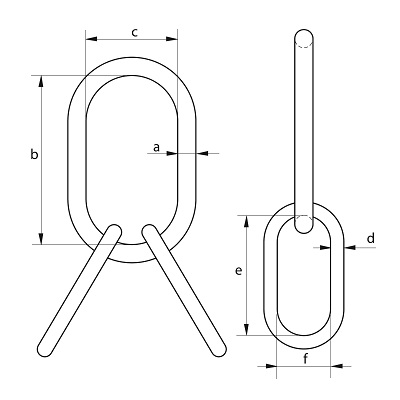

| ART.NR | WLL | a | b | c | d | e | f | kg |
| t | mm | mm | mm | mm | mm | mm | pc | |
| GPP6820004100 | 4.1 | 16 | 150 | 75 | 14.5 | 125 | 60 | 1.3 |
| GPP6820005800 | 5.8 | 22 | 270 | 140 | 16 | 150 | 75 | 3.8 |
| GPP6820008830 | 8.83 | 26 | 270 | 140 | 20 | 140 | 70 | 5.3 |
| GPP6820011800 | 11.8 | 28 | 270 | 140 | 20 | 140 | 70 | 5.9 |
| GPP6820017100 | 17.1 | 32 | 270 | 140 | 26 | 190 | 102 | 9.7 |
| GPP6820023000 | 23 | 36 | 270 | 140 | 28 | 190 | 100 | 11.9 |
| GPP6820028100 | 28.1 | 40 | 280 | 155 | 32 | 270 | 140 | 18.6 |
| GPP6820038300 | 38.3 | 45 | 320 | 175 | 36 | 270 | 140 | 25.4 |
| GPP6820045000 | 45 | 50 | 350 | 195 | 40 | 260 | 130 | 32.3 |
| GPP6820065000 | 65 | 60 | 410 | 220 | 50 | 350 | 195 | 62 |
| GPP6820100000 | 100 | 75 | 450 | 250 | 65 | 410 | 220 | 116 |
