P-6951 Green Pin® Snatch Block S - Roodenberg Staalkabels BV

Materiaal:	Koolstofstaal, voorzien van conische rollagers
Veiligheidsfactor:	MBL is gelijk aan 4 x WLL
Afwerking:	Geverfd
Certificering:	2.1, 2.2, MTC^B, CE

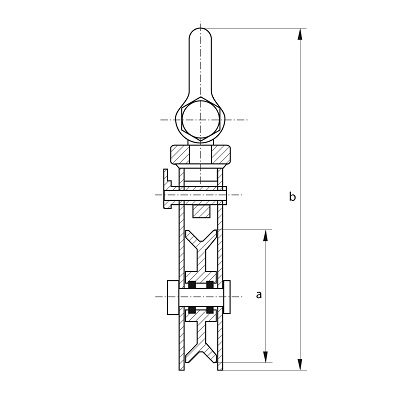

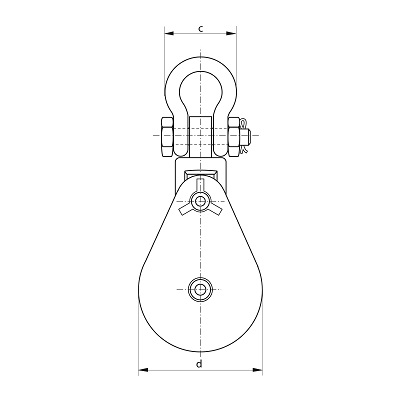

ART.NR	WLL		a	b	c	d	kg
	t	mm	mm	mm	mm	mm	pc
GPP6951002001	2	7 – 9	75	293	75	82	3.9
GPP6951004001	4	10 – 12	115	363	102	120	6.4
GPP6951004002	4	12 – 14	152	417	102	160	8.4
GPP6951008001	8	14 – 16	152	477	118	160	14.3
GPP6951012001	12	14 – 16	152	555	147	160	20
GPP6951008002	8	20 – 22	152	477	118	160	14.1
GPP6951012002	12	20 – 22	152	555	147	160	20
GPP6951015001	15	24 – 26	152	585	162	160	24
GPP6951004003	4	10 – 12	203	478	102	210	11
GPP6951012003	12	14 – 16	203	580	147	210	27
GPP6951008003	8	20 – 22	203	526	118	210	18
GPP6951012004	12	20 – 22	203	580	147	210	28
GPP6951015002	15	24 – 26	203	646	162	210	30
GPP6951008004	8	14 – 16	254	582	118	260	26
GPP6951008005	8	20 – 22	254	582	118	260	26
GPP6951012005	12	20 – 22	254	680	147	260	35
GPP6951015003	15	24 – 26	254	705	162	260	42
GPP6951008006	8	20 – 22	305	612	118	310	31
GPP6951012006	12	20 – 22	305	745	147	310	53
GPP6951015004	15	24 – 26	305	771	162	310	55
GPP6951008007	8	20 – 22	357	662	118	360	31
GPP6951012007	12	20 – 22	357	770	147	360	60
GPP6951015005	15	24 – 26	357	798	162	360	63
GPP6951022001	22	28 – 32	357	906	216	385	126
GPP6951008008	8	20 – 22	406	712	118	410	35
GPP6951012008	12	20 – 22	406	820	147	410	67
GPP6951015009	15	24 – 26	406	848	162	410	70
GPP6951022002	22	28 – 32	406	963	216	415	139
GPP6951008009	8	20 – 22	457	762	118	460	42
GPP6951012009	12	20 – 22	457	878	147	460	75
GPP6951015010	15	24 – 26	457	898	162	460	78
GPP6951022003	22	28 – 32	457	1033	216	465	154
GPP6951030001	30	28 – 32	457	1083	238	468	218
