| Materiaal: | Koolstof staal |
| Veiligheidsfactor: | MBL is gelijk aan 5 x WLL |
| Afwerking: | Geverfd zwart |
| Certificering: | 2.1, 2.2, MTCA |

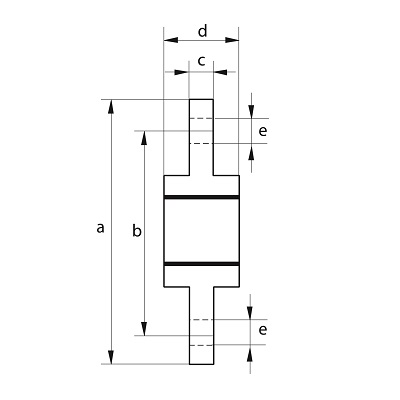

| ART.NR | WLL | a | b | c | d | e | kg |
| t | mm | mm | mm | mm | mm | pc | |
| GPP7740001000 | 1 | 174 | 128 | 12.5 | 49 | 21 | 1.4 |
| GPP7740002000 | 2 | 223 | 173 | 19 | 68 | 22 | 3.5 |
| GPP7740003000 | 3 | 278 | 210 | 26 | 79 | 29 | 6.4 |
| GPP7740005000 | 5 | 290 | 222 | 26 | 89 | 31 | 7.9 |
| GPP7740008000 | 8 | 366 | 276 | 40 | 106 | 43 | 15.2 |
| GPP7740010000 | 10 | 390 | 300 | 40 | 118 | 49 | 19.1 |
| GPP7740015000 | 15 | 457 | 355 | 40 | 128 | 49 | 26.6 |
| GPP7740020000 | 20 | 474 | 372 | 40 | 118 | 51 | 25 |
| GPP7740030000 | 30 | 612 | 472 | 64 | 138 | 59 | 50 |
| GPP7740040000 | 40 | 760 | 600 | 68 | 168 | 65 | – |
