| Materiaal: | RVS 316 |
| Afwerking: | Gepolijst |
| Certificering: | 2.1 |

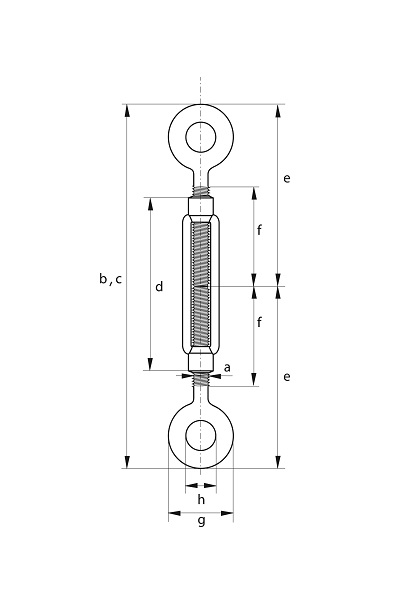

| ART.NR | a | b | c | d | e | f | g | h | kg |
| mm | mm | mm | mm | mm | mm | mm | mm | pc | |
| GPR78390000M5 | M 5 | 120 | 170 | 70 | 56 | 33 | 17 | 8 | 0.04 |
| GPR78390000M6 | M 6 | 150 | 210 | 90 | 71 | 43 | 21 | 10 | 0.08 |
| GPR78390000M8 | M 8 | 200 | 290 | 120 | 95 | 56 | 28 | 14 | 0.16 |
| GPR7839000M10 | M 10 | 240 | 355 | 150 | 118 | 71 | 34 | 16 | 0.27 |
| GPR7839000M12 | M 12 | 310 | 470 | 200 | 154 | 95 | 40 | 18 | 0.51 |
| GPR7839000M16 | M 16 | 390 | 590 | 250 | 190 | 116 | 54 | 26 | 1.2 |
| GPR7839000M20 | M 20 | 440 | 675 | 300 | 220 | 139 | 64 | 30 | 1.9 |
