| Materiaal: | Grade 10 |
| Veiligheidsfactor: | MBL is gelijk aan 4 x WLL |
| Afwerking: | Geverfd blauw |
| Gebruikstemperatuur: | -40°C tot en met +200°C |
| Certificering: | 2.1, 2.2, 3.1, MPIB, DGUV |

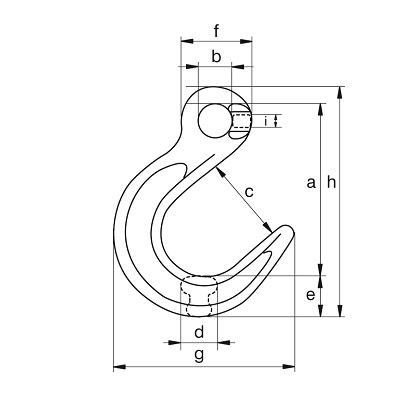

| ART.NR | WLL | a | b | c | d | e | f | g | h | i | kg | ||
| mm | inch | t | mm | mm | mm | mm | mm | mm | mm | mm | mm | pc | |
| GPUCFO0601400 | 6 | 7/32 | 1.4 | 93 | 18 | 48 | 17 | 22 | 38 | 97 | 124 | 6 | 0.33 |
| GPUCFO0802600 | 8 | 9/32 – 5/16 | 2.6 | 124 | 25 | 63 | 22 | 29 | 50 | 129 | 165 | 8 | 0.78 |
| GPUCFO1004000 | 10 | 3/8 | 4 | 157 | 33 | 80 | 28 | 36 | 65 | 161 | 208 | 10 | 1.5 |
| GPUCFO1306800 | 13 | 1/2 | 6.8 | 190 | 44 | 96 | 36 | 46 | 84 | 198 | 256 | 13 | 3 |
