| Materiaal: | Grade 10, gelegeerde staal, gedoofd en gehard |
| Veiligheidsfactor: | MBL is gelijk aan 4 x WLL |
| Afwerking: | Geverfd blauw |
| Gebruikstemperatuur: | -40°C tot en met +200°C |
| Certificering: | 2.1, 2.2, 3.1, MPIB, DGUV |

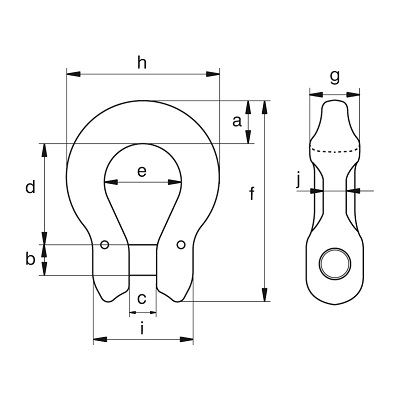

| ART.NR | WLL | a | b | c | d | e | f | g | h | i | j | kg | ||
| mm | inch | t | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | pc | |
| GPUCO06001400 | 6 | 7/32 | 1.4 | 14 | 8 | 7 | 25 | 20 | 53 | 13 | 41 | 28 | 6 | 0.07 |
| GPUCO06001950 | 9/32 | 1.95 | 21 | 10 | 9 | 34 | 24 | 72 | 16 | 58 | 32 | 9 | 0.18 | |
| GPUCO08002600 | 8 | 5/16 | 2.6 | 21 | 10 | 9 | 34 | 24 | 72 | 16 | 58 | 32 | 9 | 0.18 |
| GPUCO10004000 | 10 | 3/8 | 4 | 21 | 13 | 12 | 40 | 31 | 84 | 19 | 67 | 42 | 11 | 0.28 |
| GPUCO13006800 | 13 | 1/2 | 6.8 | 28 | 16 | 15 | 51 | 40 | 109 | 23 | 90 | 54 | 14 | 0.64 |
| GPUCO16010300 | 16 | 5/8 | 10.3 | 35 | 20 | 19 | 64 | 48 | 135 | 27 | 110 | 68 | 17 | 1.21 |
