| Materiaal: | Grade 10 |
| Veiligheidsfactor: | MBL is gelijk aan 4 x WLL |
| Afwerking: | Geverfd blauw |
| Gebruikstemperatuur: | -40°C tot en met +200°C |
| Certificering: | 2.1, 2.2, 3.1, MPIB, DGUV |
| Opmerking: | Vanaf 10 t zonder platte deel |

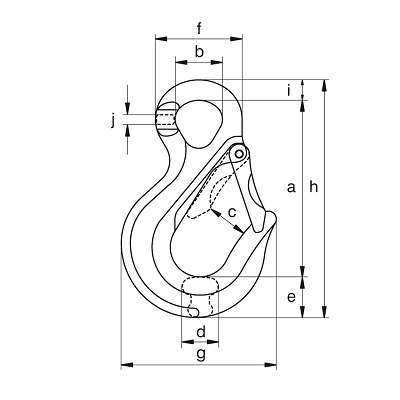

| ART.NR | WLL | a | b | c | d | e | f | g | h | i | j | kg | ||
| mm | inch | t | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | pc | |
| GPUCSO0601400 | 6 | 7/32 | 1.4 | 84 | 23 | 26 | 15 | 20 | 43 | 72 | 114 | 10 | 6 | 0.28 |
| GPUCSO0802600 | 8 | 9/32 – 5/16 | 2.6 | 103 | 26 | 30 | 20 | 24 | 51 | 87 | 139 | 12 | 8 | 0.52 |
| GPUCSO1004000 | 10 | 3/8 | 4 | 128 | 35 | 33 | 24 | 29 | 65 | 106 | 172 | 15 | 10 | 1.09 |
| GPUCSO1306800 | 13 | 1/2 | 6.8 | 152 | 41 | 37 | 32 | 39 | 77 | 133 | 209 | 18 | 12 | 1.94 |
| GPUCSO1610300 | 16 | 5/8 | 10.3 | 190 | 52 | 44 | 40 | 44 | 94 | 165 | 255 | 21 | 16 | 3.51 |
| GPUCSO2016000 | 20 | 3/4 | 16 | 237 | 60 | 61 | 49 | 62 | 115 | 208 | 327 | 28 | 21 | 7.1 |
