| Materiaal: | Grade 10 |
| Veiligheidsfactor: | MBL is gelijk aan 4 x WLL |
| Afwerking: | Geverfd wit |
| Gebruikstemperatuur: | -40°C tot en met +200°C |
| Certificering: | 2.1, 2.2, 3.1, MPIB |

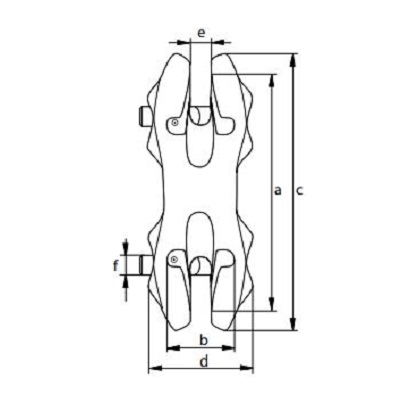

| ART.NR | WLL | a | b | c | d | e | f | kg | ||
| mm | inch | t | mm | mm | mm | mm | mm | mm | pc | |
| GPUGDC0000006 | 6 | 7/32 | 1.4 | 99 | 23 | 120 | 42 | 7 | 7 | 0.49 |
| GPUGDC0000008 | 8 | 5/16 | 2.6 | 112 | 30 | 140 | 50 | 9 | 8 | 0.77 |
| GPUGDC0000013 | 13 | 1/2 | 6.7 | 178 | 49 | 208 | 79 | 15 | 16 | 2.85 |
