| Materiaal: | Grade 10, gelegeerde staal, gedoofd en gehard |
| Veiligheidsfactor: | MBL is gelijk aan 4 x WLL |
| Afwerking: | Geverfd blauw |
| Gebruikstemperatuur: | -40°C tot en met +200°C |
| Certificering: | 2.1, 2.2, 3.1, MPIB, DGUV |

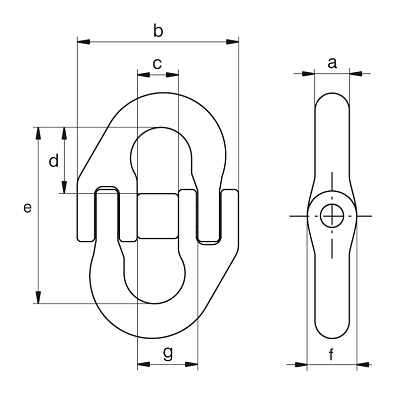

| ART.NR | WLL | a | b | c | d | e | f | g | kg | ||
| mm | inch | t | mm | mm | mm | mm | mm | mm | mm | pc | |
| GPUMJ06001400 | 6 | 7/32 | 1.4 | 8 | 42 | 11 | 20 | 52 | 11 | 15 | 0.09 |
| GPUMJ08002600 | 8 | 5/16 | 2.6 | 9 | 57 | 14 | 20 | 55 | 16 | 19 | 0.18 |
| GPUMJ10004000 | 10 | 3/8 | 4 | 12 | 66 | 18 | 23 | 64 | 18 | 23 | 0.31 |
| GPUMJ13006800 | 13 | 1/2 | 6.8 | 16 | 83 | 21 | 32 | 85 | 24 | 28 | 0.68 |
| GPUMJ16010300 | 16 | 5/8 | 10.3 | 19 | 103 | 25 | 40 | 105 | 28 | 34 | 1.27 |
| GPUMJ20016000 | 20 | 3/4 | 16 | 23 | 122 | 33 | 49 | 128 | 38 | 42 | 2.27 |
