| Materiaal: | Grade 10, gelegeerde staal, gedoofd en gehard |
| Veiligheidsfactor: | MBL is gelijk aan 4 x WLL |
| Afwerking: | Geverfd blauw |
| Gebruikstemperatuur: | -40°C tot en met +200°C |
| Certificering: | 2.1, 2.2, 3.1, MPIB |

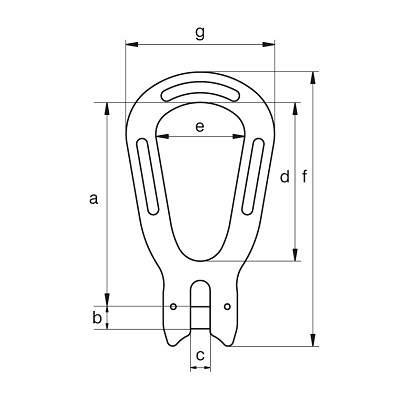

| ART.NR | WLL | a | b | c | d | e | f | g | kg | ||
| mm | inch | t | mm | mm | mm | mm | mm | mm | mm | pc | |
| GPUMP06001400 | 6 | 7/32 | 1.4 | 84 | 8 | 7 | 64 | 33 | 109 | 55 | 0.14 |
| GPUMP06001950 | 9/32 | 1.95 | 100 | 10 | 9 | 77 | 40 | 132 | 69 | 0.28 | |
| GPUMP08002600 | 8 | 5/16 | 2.6 | 100 | 10 | 9 | 77 | 40 | 132 | 69 | 0.28 |
| GPUMP10004000 | 10 | 3/8 | 4 | 125 | 13 | 12 | 97 | 50 | 165 | 84 | 0.63 |
| GPUMP13006800 | 13 | 1/2 | 6.8 | 161 | 16 | 15 | 125 | 66 | 213 | 110 | 1.4 |
| GPUMP16010300 | 16 | 5/8 | 10.3 | 198 | 20 | 19 | 154 | 84 | 262 | 140 | 2.72 |
