| Materiaal: | Grade 10, gelegeerde staal, gedoofd en gehard |
| Veiligheidsfactor: | MBL is gelijk aan 4 x WLL |
| Afwerking: | Geverfd blauw |
| Gebruikstemperatuur: | -40°C tot en met +200°C |
| Certificering: | 2.1, 2.2, 3.1, MTCB |
| diameter | diameter | ||||||||
| chain | chain | ||||||||
| 1 leg | 2 legs | ||||||||

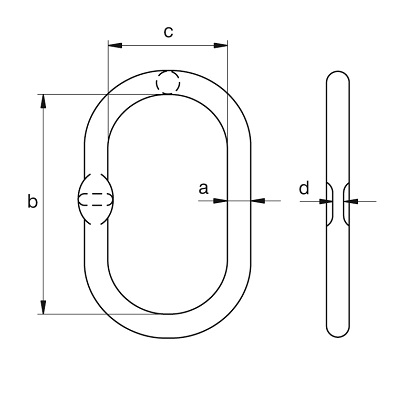

| ART.NR | a | ß ≤ 45° | ß ≤ 60° | WLL | b | c | d | kg | |
| mm | mm | mm | mm | t | mm | mm | mm | pc | |
| GPUMS13002000 | 13 | 6 | 6 | 6 | 2 | 100 | 60 | 7 | 0.33 |
| GPUMS16003200 | 16 | 8 | – | 8 | 3.2 | 120 | 70 | 7 | 0.56 |
| GPUMS18005400 | 18 | 10 | 8 | 10 | 5.4 | 135 | 75 | 9 | 0.8 |
| GPUMS22008200 | 22 | 13 | 10 | 13 | 8.2 | 170 | 90 | 11 | 1.47 |
| GPUMS25011200 | 25 | 16 | 13 | 16 | 11.2 | 190 | 105 | 13 | 2.17 |
| GPUMS30016000 | 30 | 20 | 16 | 20 | 16 | 235 | 125 | 17 | 3.82 |
| GPUMS40027600 | 40 | 22 | 20-22 | 22 | 27.6 | 290 | 160 | 21 | 9 |
