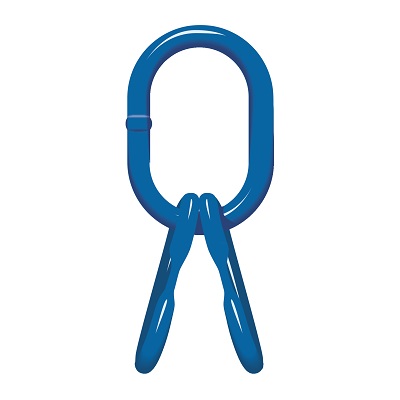

| Materiaal: | Grade 10, gelegeerde staal, gedoofd en gehard |
| Veiligheidsfactor: | MBL is gelijk aan 4 x WLL |
| Afwerking: | Geverfd blauw |
| Gebruikstemperatuur: | -40°C tot en met +200°C |
| Certificering: | 2.1, 2.2, 3.1, MTCB |
| diameter | |||||||||||
| chain | |||||||||||
| 3/4 legs | |||||||||||

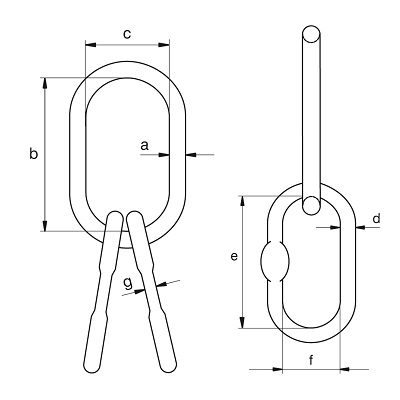

| ART.NR | a | ß ≤ 45° | ß ≤ 60° | WLL | b | c | d | e | f | g | kg |
| mm | mm | mm | t | mm | mm | mm | mm | mm | mm | pc | |
| GPUMTS18003500 | 18 | 6 | 6 | 3.5 | 135 | 75 | 16 | 100 | 60 | 7 | 1.75 |
| GPUMTS22006500 | 22 | 8 | 8-10 | 6.5 | 170 | 90 | 18 | 120 | 70 | 9 | 2.91 |
| GPUMTS28011000 | 28 | 10 | 13 | 11 | 210 | 115 | 20 | 120 | 70 | 11 | 4.74 |
| GPUMTS36017500 | 36 | 13 | 16 | 17.5 | 270 | 150 | 25 | 135 | 75 | 13 | 9.6 |
| GPUMTS38021200 | 38 | 16 | 18-19 | 21.2 | 285 | 160 | 30 | 170 | 95 | 16 | 13.38 |
| GPUMTS50041600 | 50 | 20 | 22 | 41.6 | 300 | 200 | 38 | 170 | 95 | 21 | 24.5 |
