| Materiaal: | Grade 8 |
| Veiligheidsfactor: | MBL is gelijk aan 4 x WLL |
| Standaard: | EN 1677-3 |
| Afwerking: | Geverfd wit |
| Gebruikstemperatuur: | -40°C tot en met +200°C |
| Certificering: | 2.1, 2.2, 3.1, MPIB, DGUV |

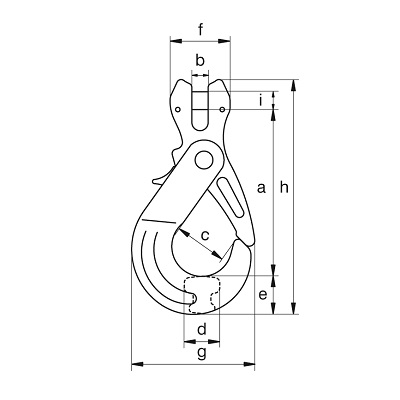

| ART.NR | WLL | a | b | c | d | e | f | g | h | i | kg | ||
| mm | inch | t | mm | mm | mm | mm | mm | mm | mm | mm | mm | pc | |
| GPXLC05000800 | 5 | 3/16 | 0.8 | 92 | 7 | 32 | 16 | 26 | 28 | 77 | 131 | 6 | 0.49 |
| GPXLC06001120 | 6 | 7/32 | 1.12 | 92 | 7 | 32 | 16 | 26 | 28 | 77 | 131 | 8 | 0.49 |
| GPXLC08002000 | 7-8 | 1/4 – 5/16 | 2 | 116 | 9 | 43 | 23 | 29 | 32 | 92 | 161 | 9 | 0.91 |
| GPXLC10003200 | 10 | 3/8 | 3.2 | 143 | 12 | 47 | 32 | 35 | 42 | 111 | 200 | 13 | 1.77 |
| GPXLC13005400 | 13 | 1/2 | 5.4 | 167 | 15 | 61 | 37 | 45 | 54 | 142 | 242 | 16 | 3.33 |
| GPXLC16008200 | 16 | 5/8 | 8.2 | 201 | 19 | 74 | 43 | 56 | 68 | 185 | 293 | 20 | 6.75 |
| GPXLC20012800 | 18 – 20 | 3/4 | 12.8 | 232 | 23 | 88 | 51 | 63 | 82 | 207 | 341 | 24 | 9.57 |
