| Materiaal: | Grade 8 |
| Veiligheidsfactor: | MBL is gelijk aan 4 x WLL |
| Standaard: | EN 1677-3 |
| Afwerking: | Geverfd wit |
| Gebruikstemperatuur: | -40°C tot en met +200°C |
| Certificering: | 2.1, 2.2, 3.1, MPIB, DGUV |
| Opmerking: | vanaf 12.8 t zonder plat deel |

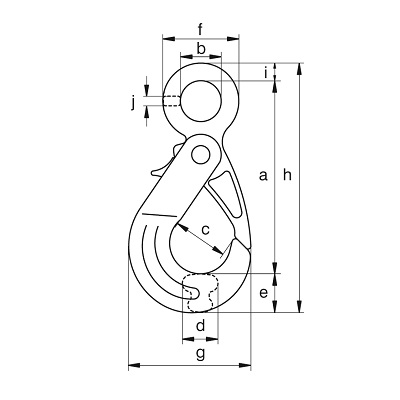

| ART.NR | WLL | a | b | c | d | e | f | g | h | i | j | kg | ||
| mm | inch | t | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | pc | |
| GPXLO06001120 | 5 – 6 | 3/16 – 7/32 | 1.12 | 111 | 24 | 32 | 16 | 26 | 47 | 77 | 147 | 11 | 7 | 0.51 |
| GPXLO08002000 | 7 – 8 | 1/4 – 5/16 | 2 | 134 | 29 | 43 | 23 | 29 | 57 | 92 | 176 | 14 | 7 | 0.91 |
| GPXLO10003200 | 10 | 3/8 | 3.2 | 168 | 35 | 47 | 32 | 35 | 69 | 111 | 219 | 17 | 10 | 1.79 |
| GPXLO13005400 | 13 | 1/2 | 5.4 | 199 | 46 | 61 | 37 | 45 | 87 | 142 | 264 | 20 | 13 | 3.36 |
| GPXLO16008200 | 16 | 5/8 | 8.2 | 247 | 59 | 74 | 43 | 56 | 111 | 185 | 328 | 26 | 16 | 7 |
| GPXLO20012800 | 18 – 20 | 3/4 | 12.8 | 282 | 69 | 88 | 51 | 63 | 126 | 207 | 374 | 28 | 20 | 9.22 |
